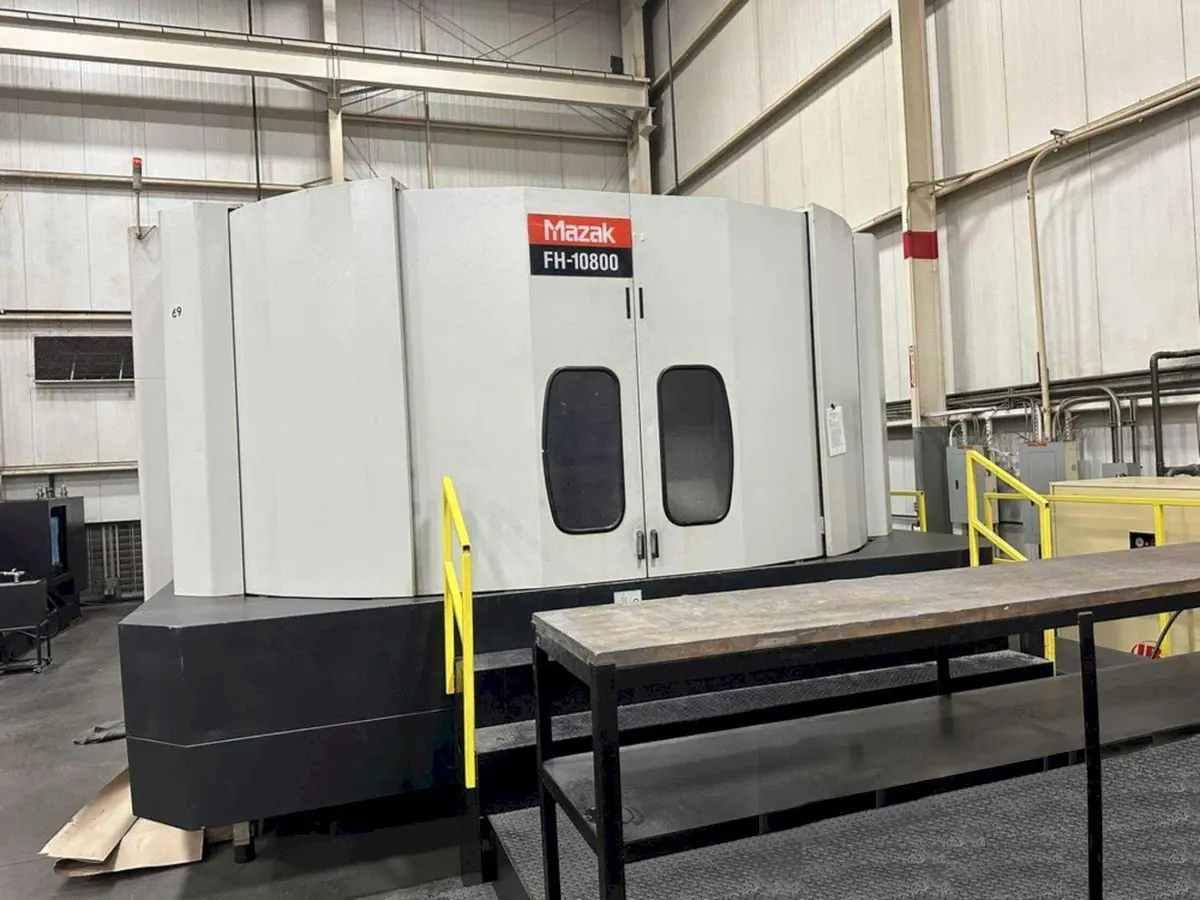

2008 MAZAK FH-10800 CNC HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2008 MAZAK FH-10800 CNC Horizontal Machining Center: Used, with MAZATROL FUSION 640M control, 66.9" x-axis, 55.1" y/z-axes, CAT 50 taper, and 7000 rpm spindle. Features include tool life monitoring, optical probe, and 120-tool capacity.
SPINDLE NOSE-> PALLET TOP 3.94" - 60"
# SPINDLE SPEED RANGES 2 (ELECTRONIC SHIFT)
MAX SPINDLE TORQUE 857 FT-LBS
TOOL CHANGE TIME 1.8 SECONDS
MAX TOOL DIAMETER 10.24"
MAX TOOL LENGTH 26"
MAX TOOL WEIGHT 66 LBS
MAZATROL FUSION 640M CNC CONTROL
EIA/ISO AND CONVERSATIONAL PROGRAMMING
(2) 39.3" SQUARE PALLETS WITH 1° INDEXING
120 POSITION TOOL CHAIN
INCH / METRIC CONVERSION
RIGID TAPPING
OPTICAL PROBE
WORK MEASURING SYSTEM
ADAPTIVE FEEDRATE CONTROL
TOOL LIFE MONITORING
TOOL BREAKAGE DETECTION
SPINDLE CHILLER UNIT
COOLANT THRU SPINDLE
CHIP CONVEYOR & COOLANT SYSTEM
2008 MAZAK FH-10800 CNC Horizontal Machining Center: Used, with MAZATROL FUSION 640M control, 66.9" x-axis, 55.1" y/z-axes, CAT 50 taper, and 7000 rpm spindle. Features include tool life monitoring, optical probe, and 120-tool capacity.
Imperial
| X-AXIS TRAVEL | 66.9" |
| Y-AXIS TRAVEL | 55.1" |
| Z-AXIS TRAVEL | 55.1" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 4050 hp |
| SPINDLE SPEED | 7000 rpm |
| MAX WORKPIECE SIZE | 80" diameter / 40" H |
| MAXIMUM WORKPIECE DIAMETER | 80" |
| RAPID TRAVERSE | 1600 |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 39.3" x 39.3" |
| Number of Axis | 4 |
| PALLET LOAD CAPACITY | 6600 lb |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL 640M) |
| Dimensions | 274" x 111" x 132" |
SPINDLE NOSE-> PALLET TOP 3.94" - 60"
# SPINDLE SPEED RANGES 2 (ELECTRONIC SHIFT)
MAX SPINDLE TORQUE 857 FT-LBS
TOOL CHANGE TIME 1.8 SECONDS
MAX TOOL DIAMETER 10.24"
MAX TOOL LENGTH 26"
MAX TOOL WEIGHT 66 LBS
MAZATROL FUSION 640M CNC CONTROL
EIA/ISO AND CONVERSATIONAL PROGRAMMING
(2) 39.3" SQUARE PALLETS WITH 1° INDEXING
120 POSITION TOOL CHAIN
INCH / METRIC CONVERSION
RIGID TAPPING
OPTICAL PROBE
WORK MEASURING SYSTEM
ADAPTIVE FEEDRATE CONTROL
TOOL LIFE MONITORING
TOOL BREAKAGE DETECTION
SPINDLE CHILLER UNIT
COOLANT THRU SPINDLE
CHIP CONVEYOR & COOLANT SYSTEM
