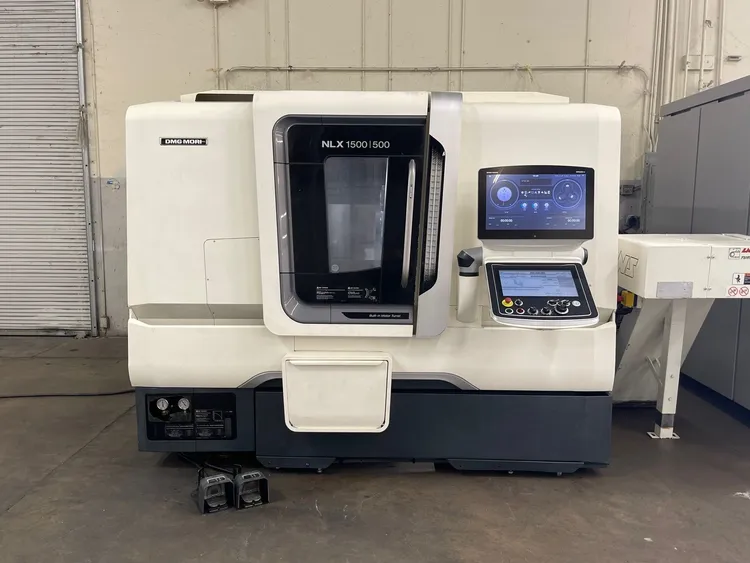

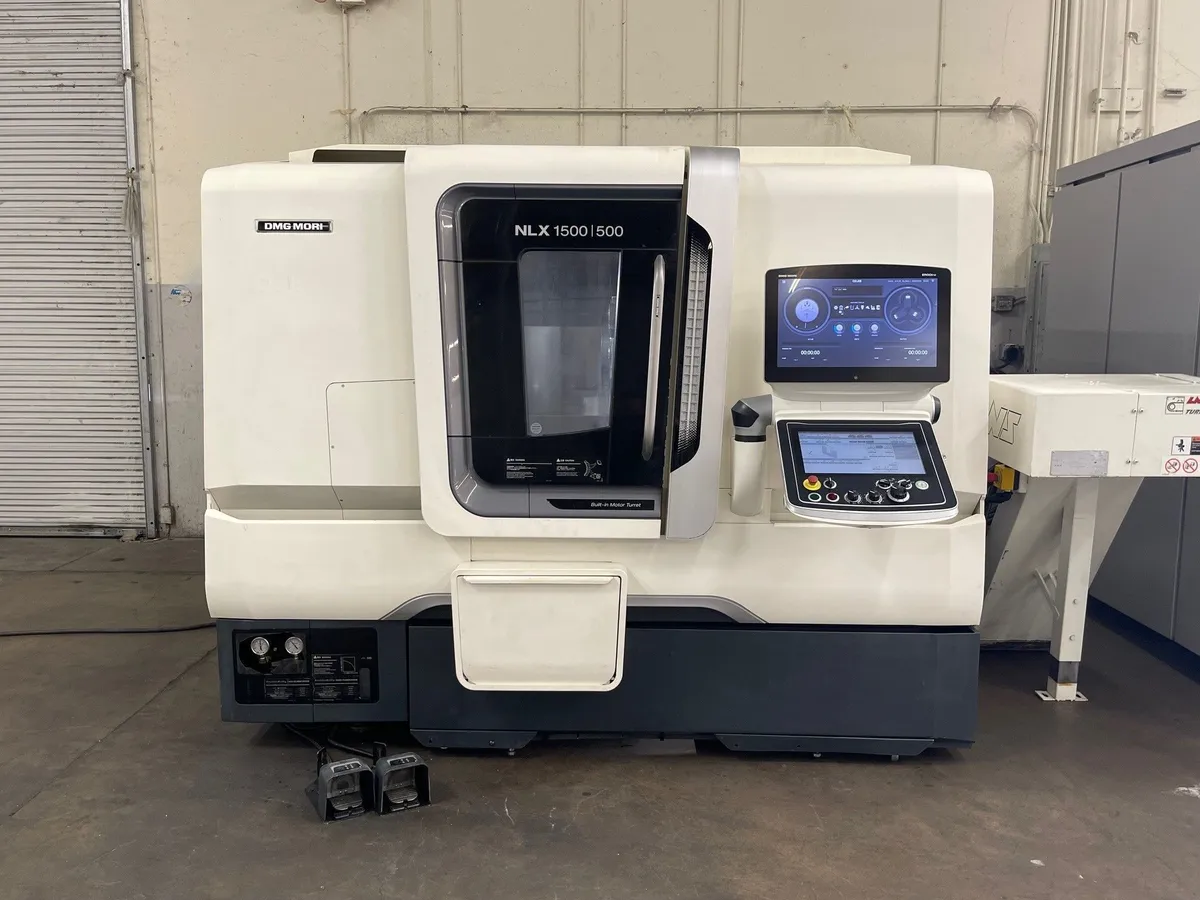

2017 DMG MORI NLX-1500SY/500
Have one to sell?
ConditionUsed
1 available
2017 DMG MORI NLX-1500SY/500 multi-axis CNC lathe in used condition. Features include a max swing of 36.4", 6,000 RPM spindle speed, and a hydraulic 6" chuck. Equipped with Mitsubishi M-730UM, parts catcher, tool presetter, chip conveyor, and manuals.
MITSUBISHI M-730UM W/ CELOS
PARTS CATCHER
TOOL PRESETTER MAIN AND SUB
CHIP CONVEYOR
ALL AVAILABLE MANUALS
2017 DMG MORI NLX-1500SY/500 multi-axis CNC lathe in used condition. Features include a max swing of 36.4", 6,000 RPM spindle speed, and a hydraulic 6" chuck. Equipped with Mitsubishi M-730UM, parts catcher, tool presetter, chip conveyor, and manuals.
Imperial
| Maximum Swing | 36.4" |
| Max Turning Diameter | 15.1" |
| Main Spindle Bore/Max Bar Capacity | 2.44"/2.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 29.7" |
| Maximum Cutting Length | 20.2" |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 23.2" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.4/ 2.0 |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 10000 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
MITSUBISHI M-730UM W/ CELOS
PARTS CATCHER
TOOL PRESETTER MAIN AND SUB
CHIP CONVEYOR
ALL AVAILABLE MANUALS
