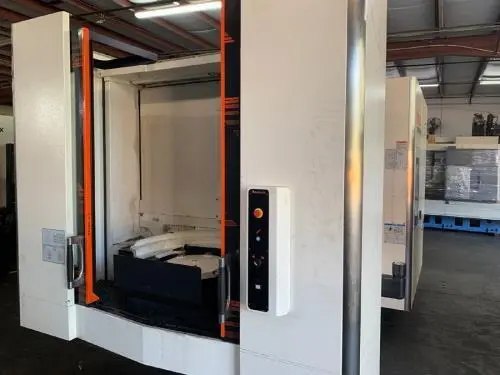

MAZAK HCN 5000 CNC HORIZONTAL MACHINING CENTER NEW: 2017
Have one to sell?
ConditionUsed
1 available
MAZAK HCN 5000-II Horizontal Machining Center, 2017 model, offers X/Y/Z travel of 28.74"/28.74"/31.45", spindle speed up to 18,000 rpm with CAT 40, 160-tool capacity, 4-axis, and a Hi-Pressure Coolant System. Comes with Smooth G CNC Control and 2 pallet changers.
INDEXING TIME: 1.4 SEC/90 DEG
DIS. BETWEEN TABLE TOP TO SPINDLE NOSE: 2.76” – 34.25”
DIS. BETWEEN PALLET TO SPINDLE CENTER: 3.94” – 32.68
MAX TOOL DIA / LENGTH / WEIGHT: 3.74” / 20.08” / 26 LBS
MAX TOOL DIA WITH ADJ POCKETS EMPTY: 6.69”
TOOL CHANGE TIME CHIP TO CHIP: 2.6 SEC
MAZATROL SMOOTH G CNC
19” COLOR LCD (TOUCH SCREEN)
EIA/ISO PACKAGE
SMOOTH STANDARD SOFTWARE FOR M/C
USB I/F (1-PORT)
LAN PORT
SD MEMORY I/F (1-PORT) + USB I/F (1-PORT)
SYNCHRONIZED TAPPING
GOO SLOPE CONSTANT
INCH/METRIC CONVERSION
TBR & MMS IN EIA/ISO PROGRAM MACRO
SPINDLE MULT-POINT ORIENT (M-CODE/1DEG.)
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
ABSOLUTE POSITIONING SYSTEM
160 TOOL CHAIN MAGAZINE (CAT40)
TOOL ID MAGAZINE PANEL (TOUCH PANEL)
CONSEP 2000 CHIP CONVEYOR REAR DISPOSAL (DUAL BELT) (MAYFRAN)
NIAGAARA COOLANT
SPINDLE SPEED 18,000 RPM (AC47HP)
BIG-PLUS TOOL PROVISION FOR CAT40
SPINDLE CHILLER UNIT
COOLERS FOR BALL SCREW XYZ
UNIVERSAL PREP. (W/SMOOTH PMC-B & HYDRUALIC-A PREP PLATE)
INDEX TABLE 1 DEG. / 360 POSITIONS
2 PALLET CHANGER
2 P/C CHANGE TO LOCATION BORE TAP PALLETS
AUTO POWER ON/OFF + WARM-UP
PREP FOR MMS-B OPTICAL TYPE OMP60
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MAZAK SUPER FLOW T8 HIGH PRESSURE COOLANT UNIT (1000 PSI/8GPM)
PRESSURE SWITCH FOR SPINDLE THRU-COOLANT
RENISHAW OMP60M OPTICAL PROBE SYSTEM
AUTO PECKING CYCLE WITH LOAD DETECTION
MAX PROGRAM SIZE: 8MB
SMOOTHLINK
UPGRADE CUSTOMER CYBER TOOL MANAGEMENT TO SMOOTH TOOL
