MAZAK VCN 530/5X LIKE NEW LOW HOURS...IF YOU ARE INTERESTED, PLEASE LET ME KNOW. THE MACHINE IS LIKE NEW. NEED TO CALL THE OWNER FOR THE BEST PRICE
Have one to sell?
ConditionUsed
1 available
$110,000.00 USD

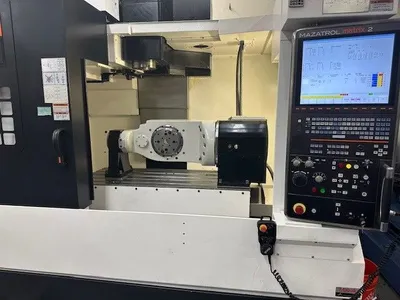

**LOW HOURS** MAZAK VCN 530/5X Vertical Machining Center available in excellent condition (Barely Used). Reliable MAZAK manufacturing with 5-axis capability, ideal for precision tasks. Suitable for various machining needs. Contact for more details.
MAZATROL MATRIX-2 WINDOWS 7 OPERATING SYSTEM
EIA PATTERN CYCLE, GRID, ARC G34.1/G35/G36/G37.1, EIA/ISO FUNCTION
SIMULTANEOUS 5-AXES
ABSOLUTE ENCODER SYS
MANUAL PULSE GENERATOR
LAN PORT IN ELECTRICAL CABINET
DATA I/O FUNCTION ONLY, USB 2 PORTS
USER MACRO COMMON VARIABLES 600 PAIRS
MAZAK TAPPING/BORING TORNADO, EIA/ISO G130
B)MAZACC-2D SOFTWARE SHAPE
COMPENSATION, TILTED WORKING PLANE
ADD. WORKPIECE COORDINATE SYS.
300 PAIRS THREAD CUTTING FUNCTION
POLAR COORDINATES INPUT
SYNCHRONIZED TAPPING
TOOL RADIUS COMPENSATION 5-AXIS
TOOL-TIP POINT CONTROL/
SIMULTANEOUS 5-AX WORK SETTING ERROR COMPENSATION
PRESSURE SWITCH FOR SPINDLE THRU-COOLANT
SPINDLE CHILLER
HI-PRESSURE COOLANT-THRU SPINDLE SYSTEM 15KGF 213 PSI POWER
TRANSFORMER
**LOW HOURS** MAZAK VCN 530/5X Vertical Machining Center available in excellent condition (Barely Used). Reliable MAZAK manufacturing with 5-axis capability, ideal for precision tasks. Suitable for various machining needs. Contact for more details.
Imperial
| X Travel | 41.33" |
| Y Travel | 20.86" |
| Z Travel | 20.86" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 21.86" |
| Table Size (L) | 51.1" |
| Main Spindle Motor | 25 hp |
| Spindle Taper | CAT 40 |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 120" FB X 145" L X 120" T |
| Weight | 16,380 LBS |
MAZATROL MATRIX-2 WINDOWS 7 OPERATING SYSTEM
EIA PATTERN CYCLE, GRID, ARC G34.1/G35/G36/G37.1, EIA/ISO FUNCTION
SIMULTANEOUS 5-AXES
ABSOLUTE ENCODER SYS
MANUAL PULSE GENERATOR
LAN PORT IN ELECTRICAL CABINET
DATA I/O FUNCTION ONLY, USB 2 PORTS
USER MACRO COMMON VARIABLES 600 PAIRS
MAZAK TAPPING/BORING TORNADO, EIA/ISO G130
B)MAZACC-2D SOFTWARE SHAPE
COMPENSATION, TILTED WORKING PLANE
ADD. WORKPIECE COORDINATE SYS.
300 PAIRS THREAD CUTTING FUNCTION
POLAR COORDINATES INPUT
SYNCHRONIZED TAPPING
TOOL RADIUS COMPENSATION 5-AXIS
TOOL-TIP POINT CONTROL/
SIMULTANEOUS 5-AX WORK SETTING ERROR COMPENSATION
PRESSURE SWITCH FOR SPINDLE THRU-COOLANT
SPINDLE CHILLER
HI-PRESSURE COOLANT-THRU SPINDLE SYSTEM 15KGF 213 PSI POWER
TRANSFORMER
