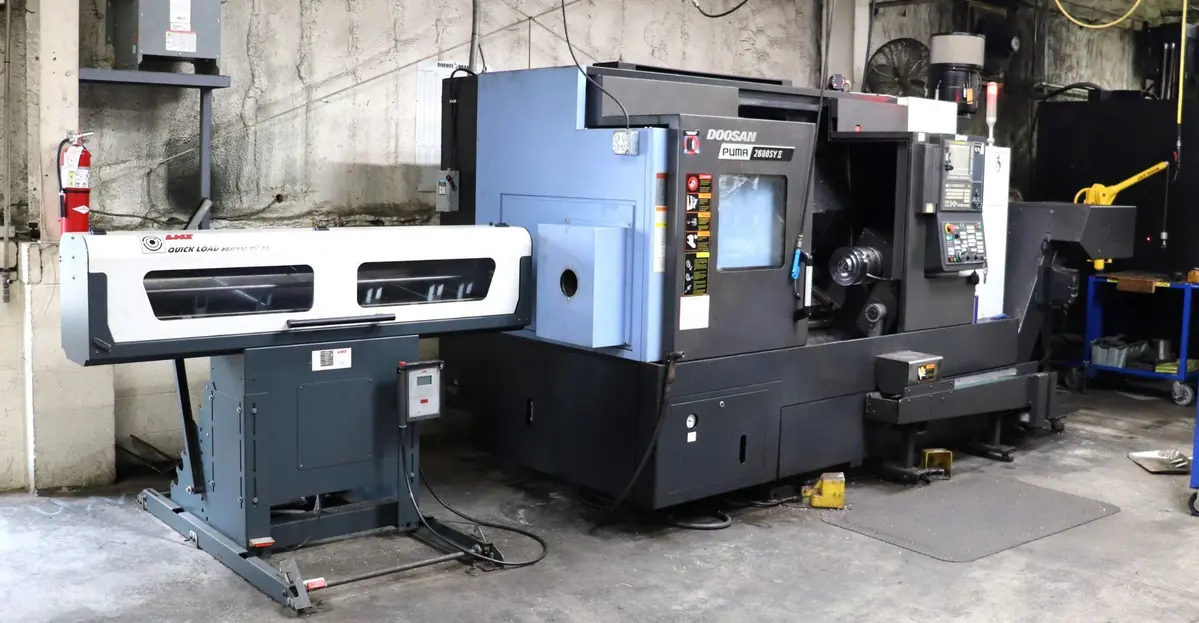

DOOSAN PUMA 2600SY LATHE WITH MILLING, SUB-SPINDLE AND BAR-FEEDER

DOOSAN PUMA 2600SY LATHE WITH MILLING, SUB-SPINDLE AND BAR-FEEDER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA 2600SYII
Condition:
Excellent
Year:
2017
Stock #:
210649
Status:
For Sale
Maximum Swing30.7"779.78 mm
Max Turning Diameter14.8"375.92 mm
Main Spindle Bore/Max Bar Capacity3.38"/ 3.0"3.38"/ 3.0"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length29.9"759.46 mm
X-Axis Travel (X1, X2, X3)10.210.2
Z-Axis Travel (Z1, Z2, Z3)32.732.7
Y-Axis Travel (Y1, Y2, Y3)+/-2.1"+/-2.1"
C-Axis Indexing (1, 2).001 DEGREE.001 DEGREE
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.38"85.852 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size22
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)2020
Turret Tool Positions 1, 22424
Turret Rotary Tool Spindle Speed 1, 250005000
Turret Rotary Tool Horse Power 1, 21010
B-Axis Travel32.732.7
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Chip ConveyorRearRear
Number of Available Live Tool Holders55
ControlCNC (DOOSAN FANUC i-SERIES)CNC (DOOSAN FANUC i-SERIES)
Dimensions153" X 74" X 85"153" X 74" X 85"
Weight14,400 LBS14,400 LBS

FANUC i-SERIES CNC CONTROL
SUB SPINDLE
Y-AXIS
LIVE MILLING
MAIN & SUB SPINDLE SAMCHULLY CHUCKS
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
LNS QUICK LOAD 80 S2 SERVO BAR FEEDER
LNS TURBO CHIP CONVEYOR
OIL SKIMMER
DOOSAN HI-PSI COOLANT PUMPS
COOLANT TANK
ROYAL FILTERMIST FX575 MIST COLLECTOR
LIVE TOOLING INCLUDED:
(2) RADIAL TOOL HOLDERS
(3) AXIAL TOOL HOLDERS
TOOLING DISPLAYED ON THE TABLE AS PICTURED INCLUDED
TOOLING IN THE MACHINE TURRET AS PICTURED NOT INCLUDED

** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY 1018 & 1025 STEEL
** AS OF SEPTEMBER, 2024 - CUTTING TIME HOURS: 5,278
** MACHINE MANUFACTURED DATE: AUGUST, 2017
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
