MAZAK QTN 350MY/ 60"
Have one to sell?
ConditionUsed
1 available

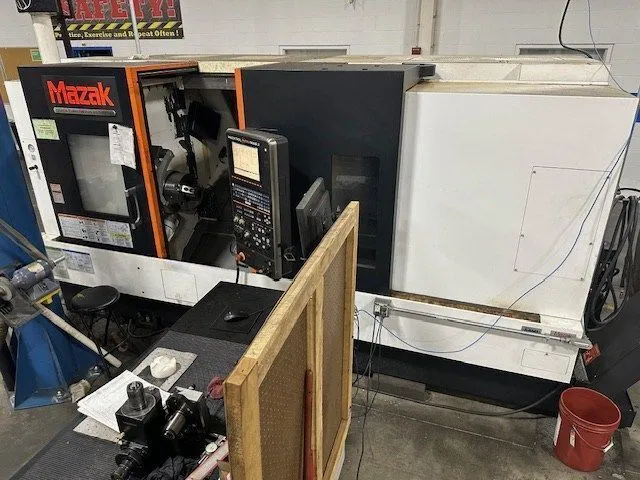

Used 2014 MAZAK QTN 350MY II CNC Lathe in excellent condition. Features 29.5" max swing, high-pressure coolant system, and advanced MAZATROL MATRIX 2 control. Tool capacity includes 12 turret positions with 4,000 RPM rotary tool speed. Equipped with chip conveyor and mist collect system for optimal operation.
MAZATROL MATRIX 2 CNC COLOR CONVERSATIONAL CONTROL
MAZAK HIGH-PRESSURE COOLANT 213 PSI WITH FILTRATION SYSTEM
(2) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
C-AXIS .0001 DEGREE
COMPARISON STOP, G54.1, SYNC MILL TAP, VARIABLE 600 MACRO
CYLINDER, EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE
EIA / ISO
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
KITAGAWA 12" BB 3 JAW HYDRAULIC CHUCK
LAN PORT
MIST COLLECT SYSTEM
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
TILTED WORKPLANE, POITCH ERROR COMP.
USB I/F 2 PORTS
Used 2014 MAZAK QTN 350MY II CNC Lathe in excellent condition. Features 29.5" max swing, high-pressure coolant system, and advanced MAZATROL MATRIX 2 control. Tool capacity includes 12 turret positions with 4,000 RPM rotary tool speed. Equipped with chip conveyor and mist collect system for optimal operation.
Imperial
| Maximum Swing | 29.5" |
| Max Turning Diameter | 16.5" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Cutting Length | 60.637" |
| X-Axis Travel (X1, X2, X3) | 10.13 |
| Z-Axis Travel (Z1, Z2, Z3) | 63.25 |
| Y-Axis Travel (Y1, Y2, Y3) | 6.0" |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40/30 HP (30 min/continuous) |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Steady Rest | No |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (Mazatrol Matrix 2) |
| Weight | 19,870 LBS. |
MAZATROL MATRIX 2 CNC COLOR CONVERSATIONAL CONTROL
MAZAK HIGH-PRESSURE COOLANT 213 PSI WITH FILTRATION SYSTEM
(2) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
C-AXIS .0001 DEGREE
COMPARISON STOP, G54.1, SYNC MILL TAP, VARIABLE 600 MACRO
CYLINDER, EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE
EIA / ISO
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
KITAGAWA 12" BB 3 JAW HYDRAULIC CHUCK
LAN PORT
MIST COLLECT SYSTEM
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
TILTED WORKPLANE, POITCH ERROR COMP.
USB I/F 2 PORTS
