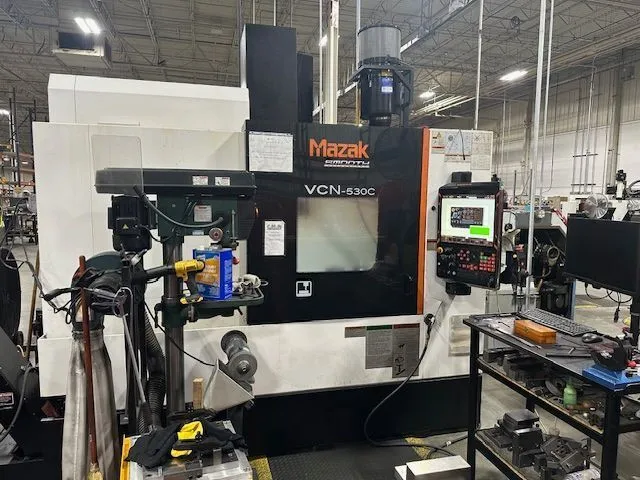

2018 MAZAK VCN 530C VERTICAL MACHINING CENTER WITH SMOOTH G CONTROL.

2018 MAZAK VCN 530C VERTICAL MACHINING CENTER WITH SMOOTH G CONTROL.

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCN 530C
Condition:
Excellent
Year:
2018
Stock #:
210653
Status:
For Sale

Description

2018 MAZAK VCN 530C Vertical Machining Center, featuring SMOOTH G Control. Specs include 41.31" X Travel, 15000 rpm spindle, 30-tool capacity, and CAT 40 taper. Equipped with high-pressure coolant, auto tool measurement, and chip conveyor.

X Travel41.31"1,049.3 mm
Y Travel20.08"510.03 mm
Z Travel20.08"510.03 mm
Spindle Speed15,000 RPM15000 rpm
Tool Capacity (ATC)3030
Table Size (W)51.1"1,297.9 mm
Table Size (L)21.65"549.91 mm
Main Spindle Motor15 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top5.9" TO 25.98"5.9" TO 25.98"
Coolant Thru High PressureYesYes
Hi Pressure Coolant System213 psi
Tool Probe/Auto Tool Length MeasurementYesYes
Rapid Traverse Rates: X Axis Y Axis Z Axis1417, 1417, 1417 IPM1417, 1417, 1417 IPM
Chip ConveyorYESYES
ControlCNC (MAZATROL SMOOTH G)CNC (MAZATROL SMOOTH G)
Weight15,600 LBS15,600 LBS

Tool Diameter 3.15", 4.92"
Tool Length 13.78"
Tool Weight 17.64 LBS.

MAZATROL SMOOTH G CONTROL
EIA, HIGH SMOOTHING CONTROL, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
HIGH SPEED, SHAPE COMP, THREAD, INVERSE TIME, AUTO TLM
POLAR COORDINATES INPUT, COMPARISON STOP, G54.1,
SYNC MILL TAPPING, ROT-AXIS SHAPE COMP
VARIABLE 600 SETS, EIA HELICAL TAP, PATTERN CYCLE
2ND AUX. FUNCTIONING, TILTED WORK PLANE
PITCH ERROR COMP
MAZAK HIGH PRESSURE THROUGH SPINDLE COOLANT 213 PSI
AUTO TOOL LENGTH MEASUREMENT SYSTEM
CHIP CONVEYOR
