SMART SL 4500

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
SMART
Model:
SL 4500
Condition:
Excellent
Stock #:
210656
Status:
For Sale

Description

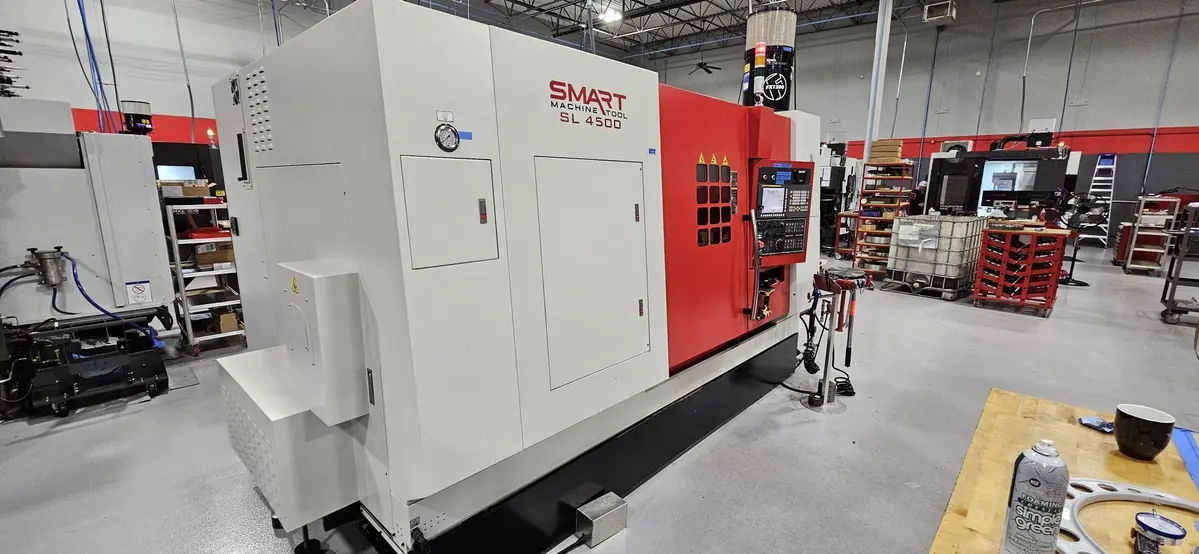

SMART SL 4500, a used CNC lathe with 2-axis, features a max swing of 33.07", turning diameter of 25.59", 18" hydraulic chuck, and 50 hp spindle motor. Equipped with FANUC 0i-TF control, box ways, and chip conveyor, offering 12 turret positions.

Max. Swing33.07"839.98 mm
Max Turning Diameter25.59"649.99 mm
Spindle Bore/Max Bar Capacity5.51/5.51/
Z Travel30"762 mm
Machining Length30"762 mm
Chuck Size18"457.2 mm
Chuck TypeHydraullicHydraullic
Spindle Motor50 hp
Spindle Speeds (RPM)14001400
Spindle Bore5.51 in
Turret Tool Positions1212
TailstockYesYes
ControlCNC (FANUC 0i-TF)CNC (FANUC 0i-TF)
Dimensions182" X 90" X 88182" X 90" X 88

RAPID TRAVERSE - X/ Y/ Z 708 IPM
TAILSTOCK MT #5
QUILL TRAVEL - BY HYDRAULIC 4.72"
TURRET INDEXING 0.25 SECONDS

FANUC 0i-TF CONTROL
BOX WAYS
CHIP CONVEYOR
