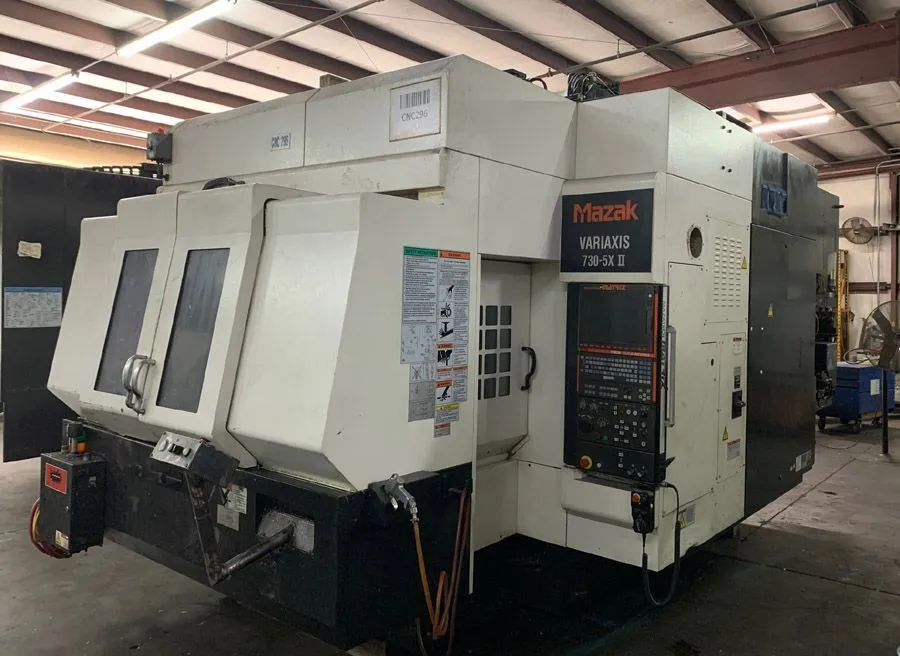

2011 MAZAK VARIAXIS 730-5X II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VARIAXIS 730-5X II
Condition:
Good
Year:
2011
Stock #:
210658
Status:
For Sale

Description

2011 MAZAK VARIAXIS 730-5X II, vertical machining center with 5-axis tool tip control, synchronized tapping, 10000 rpm spindle speed, and 40-tool ATC. Features MAZATROL MATRIX control, dual belt conveyor, and trunnion table. High-pressure coolant system included.

X Travel28.74"730 mm
Y Travel33.46"849.88 mm
Z Travel22.05"560.07 mm
Spindle Speed10,000 RPM10000 rpm
Tool Capacity (ATC)4040
Table Size (W)19.6"497.84 mm
Table Size (L)24.9"632.46 mm
Main Spindle Motor40 hp
Main Horse Power60/40/30 HP60/40/30 HP
Spindle TaperCAT 50CAT 50
Spindle Nose To Table Top9.0" ~ 31.1"9.0" ~ 31.1"
Built In or Bolt On TableBuilt InBuilt In
Table Type A-Axis Trunnion Tilt Range+30° ~ 120°+30° ~ 120°
Table Type C-Axis Table Rotation.001 N/C Contouring 360000 Degrees.001 N/C Contouring 360000 Degrees
Coolant ThruYesYes
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
Part ProbeNoNo
Tool Probe/Auto Tool Length MeasurementYesYes
Rapid Traverse Rates16541654
Chip Conveyoryesyes
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Dimensions236" x 106" x 141"236" x 106" x 141"

MAZATROL MATRIX CONTROL 15” COLOR LCD
EIA/ISO CODE INPUT FUNCTION
ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO) MAX PROGRAM SIZE: 8MB
CARDBUS I/F (2-SLOT) LAN PORT
USB I/F
SYNCHRONIZED TAPPING
EIA/ISO FUNCTION SIMULTANEOUS 5 AXES TOOL TIP POINT CONTROL / SIMULT. 5 AXES TOOL RADIUS
COMPENSATION / 5-AXIS
EIA DYNAMIC COMPENSATION 2 (INCLUDED 1) GOO SLOPE CONSTANT
MAZACC-2D SOFTWARE (SHAPE COMPENSATION) SHAPE COMPENSATION FOR ROTARY AXES INCH/METRIC CONVERSION
CYLINDRICAL INTERPOLATION
SPINDLE MULTI-POINT ORIENT (M-CODE/1 DEG) ABSOLUTE POSITIONING SYSTEM
40 TOOL MAGAZINE
PREP COOLANT THRU SPINDLE (SUPER FLOW) SPINDLE SPEED 10,000 RPM # 50 / 40HP RELOCATION DEVICE
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL 2 PALLET CHANGER
PREP ONLY FOR MAZAK MONITORING SYS. B RMP600 EDGE-LOCATOR (FOR PALLET)
MANUAL PULSE GENERATOR
MAYFRAN RIGHT SIDE EXIT CONSEP DUAL BELT CONVEYOR MAZAK SUPER FLOW T8HIGH PRESSURE COOLANT 1000 PSI
/ 8 GM
