DOOSAN PUMA 2600SY 5-AXIS CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA 2600SY
Year:
2011
Stock #:
210659
Status:
For Sale

Description

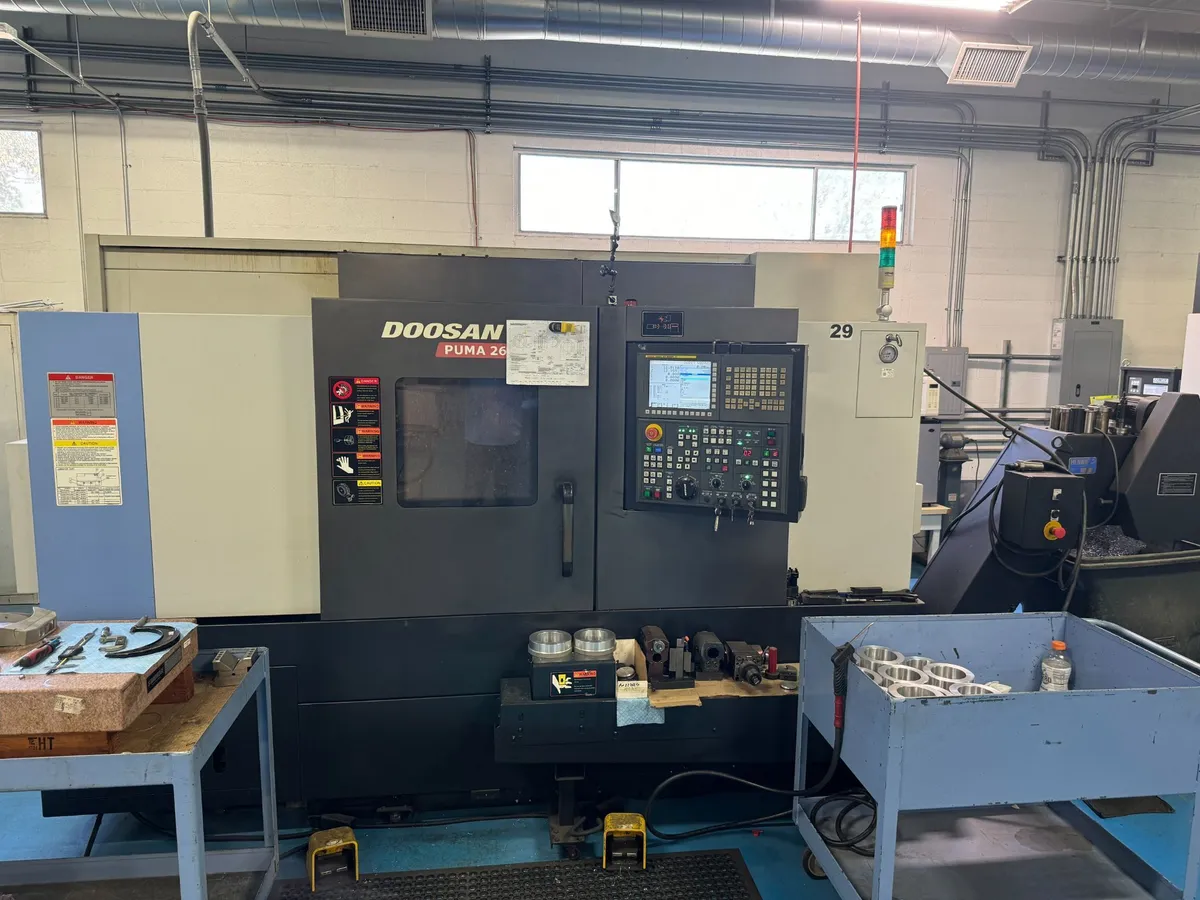

DOOSAN PUMA 2600SY 5-axis CNC lathe from 2011 in used condition. It features a maximum swing of 30.7" and a max turning diameter of 14.8". With 5-axis capability and equipped with a subspindle, chip conveyer, parts catcher, and FANUC control.

Maximum Swing30.7"779.78 mm
Max Turning Diameter14.8"375.92 mm
Main Spindle Bore/Max Bar Capacity3"3"
Tail Stock/Sub Spindle(SUB SPINDLE):32.7"(SUB SPINDLE):32.7"
Maximum Swing Over Cross Slide14.8"375.92 mm
Maximum Cutting Length29.9"759.46 mm
X-Axis Travel (X1, X2, X3)10.210.2
Z-Axis Travel (Z1, Z2, Z3)32.732.7
Y-Axis Travel (Y1, Y2, Y3)4.14.1
C-Axis Indexing (1, 2)0.001°0.001°
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30 HP30 HP
Sub Spindle/2nd Spindle Bore Size2.42.4
Sub Spindle/2nd Spindle Chuck TypeColletCollet
Sub Spindle/2nd Spindle Speed4,500 RPM4,500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)11 HP11 HP
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 250005000
Rapid Traverse, X-Axis11811181
Rapid Traverse, Z-Axis11811181
ControlCNC (FANUC 31i - A)CNC (FANUC 31i - A)

SWING: 30.7"
MAX TURNING LENGTH: 29.9"
TURNING DIAMETER: 14.8"
CENTER DISTANCE: 32.7"
BAR CAPACITY: 3"
X-AXIS TRAVEL: 10.2"
Z-AXIS TRAVEL: 32.7"
Y-AXIS TRAVEL: 4.1"
B-AXIS TRAVEL (SUB SPINDLE):32.7"
C1/C2-AXIS INDEX: 0.001°
RAPID TRAVERSE (X/Z): 1,181 IPM
SPINDLE NOSE: A2-8
SPINDLE SPEED: 4,000 RPM
MAIN MOTOR: 30 HP
LIVE TOOLING: YES
LIVE TOOLING SPEED: 5,000 RPM
LIVE TOOLING MOTOR: 7.5 HP
TAILSTOCK: NO
Y-AXIS: YES
SUB SPINDLE: YES
SUB SPINDLE NOSE: A2-5
SUB SPINDLE CHUCK: COLLET
SUB SPINDLE BAR CAPACITY: 2.4"
SUB SPINDLE SPEED: 4,500 RPM
SUB SPINDLE MOTOR (HP): 11 HP
TURRET CAPACITY: 12

# AXIS: 5
SUBSPINDLE
Y AXIS MILLING
CHIP CONVEYER
PARTS CATCHER
PARTS CONVEYER
CNC CONTROL: FANUC 31I-MODEL A
