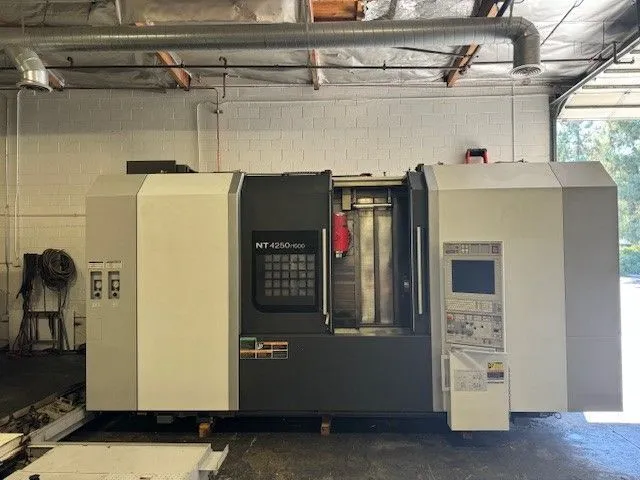

2014 MORI- SEIKI NT 4250DCG/ 1500SZ MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
2014 MORI-SEIKI NT 4250DCG/1500SZ CNC Lathe with multi-axis capabilities. Features include a max swing of 28.7", 4,000 RPM spindles, and 40-tool ATC. They are equipped with Motoman robot loader, Fanuc control, mist buster, and high-pressure coolant. Used condition.
MOTOMAN ROBOT LOADER
PARTS LOAD AND UNLOAD TABLES
MILLING HEAD AND Y-AXIS
LOWER TURRET
FANUC F3IA5 CONTROL
MIST BUSTER
100 TOOL ATC
CHIP CONVEYOR
COOL JET HIGH PRESSURE COOLANT
SUB SPINDLE.
2014 MORI-SEIKI NT 4250DCG/1500SZ CNC Lathe with multi-axis capabilities. Features include a max swing of 28.7", 4,000 RPM spindles, and 40-tool ATC. They are equipped with Motoman robot loader, Fanuc control, mist buster, and high-pressure coolant. Used condition.
Imperial
| Maximum Swing | 28.7" |
| Max Turning Diameter | 25.9" |
| Main Spindle Bore/Max Bar Capacity | 3.6"/ 3.1" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 15.7" |
| Distance Between Centers | 73.3" |
| Maximum Cutting Length | 60.7" |
| X-Axis Travel (X1, X2, X3) | 24.6" + 4.9"/ 7.7" |
| Z-Axis Travel (Z1, Z2, Z3) | 61.0" + 3.9"/ 60.0" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 8.3" |
| C-Axis Indexing (1, 2) | .0001 Deg. |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.6" |
| Main Spindle Maximum Bar Work | 3.1" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Bore Size | 3.6 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| ATC Magazine Capacity | 40 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| Turret Rotary Tool Horse Power 1, 2 | 24.0 |
| B-Axis Head Indexing | 0 deg |
| Chip Conveyor | Yes |
| Control | CNC (FANUC) |
| Weight | 56,320 LBS. |
MOTOMAN ROBOT LOADER
PARTS LOAD AND UNLOAD TABLES
MILLING HEAD AND Y-AXIS
LOWER TURRET
FANUC F3IA5 CONTROL
MIST BUSTER
100 TOOL ATC
CHIP CONVEYOR
COOL JET HIGH PRESSURE COOLANT
SUB SPINDLE.
