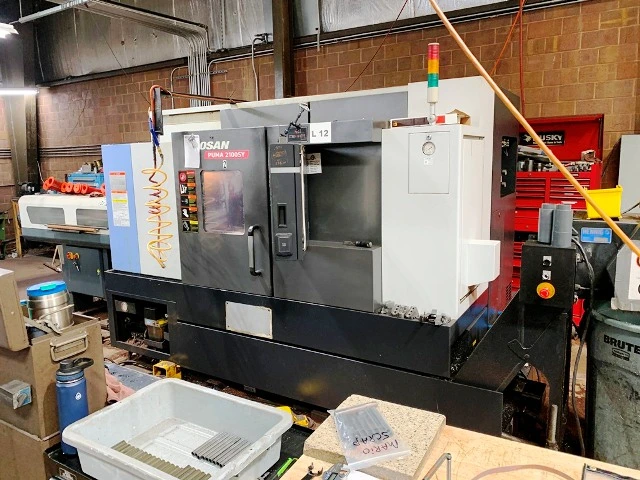

DOOSAN PUMA 2100SY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA 2100SY
Year:
2011
Stock #:
210661
Status:
For Sale

Description

THIS WELL MAINTAINED DOOSAN PUMA 2100SY MULTI AXIS CNC LATHE FEATURES FANUC 21T CONTROL, FULL C-AXIS, 3 JAW CHUCK AND CAN HANDLE UP TO 2.6" BAR WORK. 2011.

Maximum Swing30.7"779.78 mm
Max Turning Diameter16"406.4 mm
Main Spindle Bore/Max Bar Capacity3.0/ 2.63.0/ 2.6
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length20.5"520.7 mm
X-Axis Travel (X1, X2, X3)10.2"10.2"
Z-Axis Travel (Z1, Z2, Z3)23.223.2
Y-Axis Travel (Y1, Y2, Y3)4.14.1
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3"76.2 mm
Main Spindle Maximum Bar Work2.6"66.04 mm
Main Spindle Speed4,500 RPM4,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)2020
Turret Tool Positions 1, 21212
B-Axis Travel23.223.2
Parts CatcherYesYes
Chip ConveyorSideSide
ControlCNCCNC
Dimensions125" x 74" x 85"125" x 74" x 85"
Weight13,000 LBS13,000 LBS

SPECIFICATIONS:
MAX. TURNING DIAMETER       16"
MAX. TURNING LENGTH         20.5"
BAR WORKING DIAMETER        2.6"
MAIN SPINDLE SPEED          4500 RPM
SUB SPINDLE SPEED           4500 RPM
X-AXIS TRAVEL               10.2
Z-AXIS TRAVEL               23.2"
Y-AXIS TRAVEL               4.1"
B-AXIS TRAVEL               23.2"
C-AXIS TRAVEL               360 DEG (IN 0.001)
RAPID TRAVERSE RATES
X-AXIS                      1181.1 IPM
Z-AXIS                      1181.1 IPM
Y-AXIS                      393.7 IPM
B-AXIS                      1181.1 IPM
NUMBER OF TOOL STATIONS     12
OD TOOL SIZE                1" X 1"
BORING BAR DIAM (MAIN/SUB)  1.6" X 1"
DIMENSIONS                  125" x 74" x 85"
WEIGHT                      13,000 LBS

Fanuc 21T/CRT CONTROL
3 JAW CHUCK (COLLET CHUCK NA)
BAR FEED INTERFACE (BARFEED NA)
SUB SPINDLE
PARTS CATCHER
TOOLING AND LIVE MILL HEADS
FULL C-AXIS
Y AXIS
CHIP CONVEYOR
ALL AVAIL MANUALS
