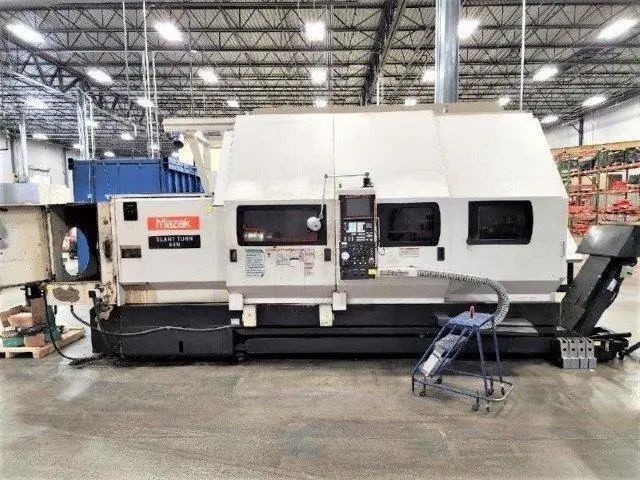

MAZAK SLANT TURN 80N /2000 CNC UNIVERSAL LATHE
Have one to sell?
ConditionUsed
1 available
Mazak 2007 Slant Turn 80N CNC Lathe: Max Swing 42.13", Max Turning Ø 33", Spindle Bore 20.74", X/Z Travel 10.5"/77.92", 80 hp, 300 RPM. Features: Mazatrol Fusion 640T CNC, chip conveyor, coolant tank. Ideal for robust machining tasks.
SWING OVER CARRIAGE: 42"
MAXIMUM CUTTING CAPACITY KN/LBF: 2,640
BED TYPE SLIDEWAY WIDTH: 45 SLANT TYPE 41.34"
X-AXIS SLIDEWAY WIDTH: 21.65” RECTANGLE 60 DEG INCLINATION
Z-AXIS SLIDEWAY WIDTH: 20.67" RECTANGLE
SPINDLE BORE: 20.75"
SPINDLE CENTER HEIGHT: 21.76"
NUMBER OF SPINDLE GEARS: 2
2-STEP GEAR SHIFT HYD. SPEED: 300 RPM
MAZATROL FUSION 640T CNC CONTROL
RE-THREADING
REAR MOUNT CHUCK ADAPTER
HIGH POWER COOLANT 1.1KW/93 PSI/7.9 GPM
CHIP CONVEYOR
COOLANT TANK
Mazak 2007 Slant Turn 80N CNC Lathe: Max Swing 42.13", Max Turning Ø 33", Spindle Bore 20.74", X/Z Travel 10.5"/77.92", 80 hp, 300 RPM. Features: Mazatrol Fusion 640T CNC, chip conveyor, coolant tank. Ideal for robust machining tasks.
Imperial
| Max. Swing | 42.13" |
| Max Turning Diameter | 33" |
| Spindle Bore/Max Bar Capacity | 20.74 |
| Z Travel | 77.92" |
| X Travel | 10.5" |
| Machining Length | 73.8" |
| Chuck Size | 40" |
| Chuck Type | Manual |
| Spindle Motor | 80 hp |
| Spindle Speeds (RPM) | 300 |
| Spindle Bore/Bar Capacity | 20.74 in |
| Turret Tool Positions | 16 |
| Tailstock | No |
| Chip Conveyor | Yes |
| Rear Chuck Prep | Yes |
| Rear Chuck | No |
| Control | CNC (MAZATROL FUSION 640T) |
| Dimensions | 245" x 116" x 122" |
| Weight | 42,000 lbs |
SWING OVER CARRIAGE: 42"
MAXIMUM CUTTING CAPACITY KN/LBF: 2,640
BED TYPE SLIDEWAY WIDTH: 45 SLANT TYPE 41.34"
X-AXIS SLIDEWAY WIDTH: 21.65” RECTANGLE 60 DEG INCLINATION
Z-AXIS SLIDEWAY WIDTH: 20.67" RECTANGLE
SPINDLE BORE: 20.75"
SPINDLE CENTER HEIGHT: 21.76"
NUMBER OF SPINDLE GEARS: 2
2-STEP GEAR SHIFT HYD. SPEED: 300 RPM
MAZATROL FUSION 640T CNC CONTROL
RE-THREADING
REAR MOUNT CHUCK ADAPTER
HIGH POWER COOLANT 1.1KW/93 PSI/7.9 GPM
CHIP CONVEYOR
COOLANT TANK
