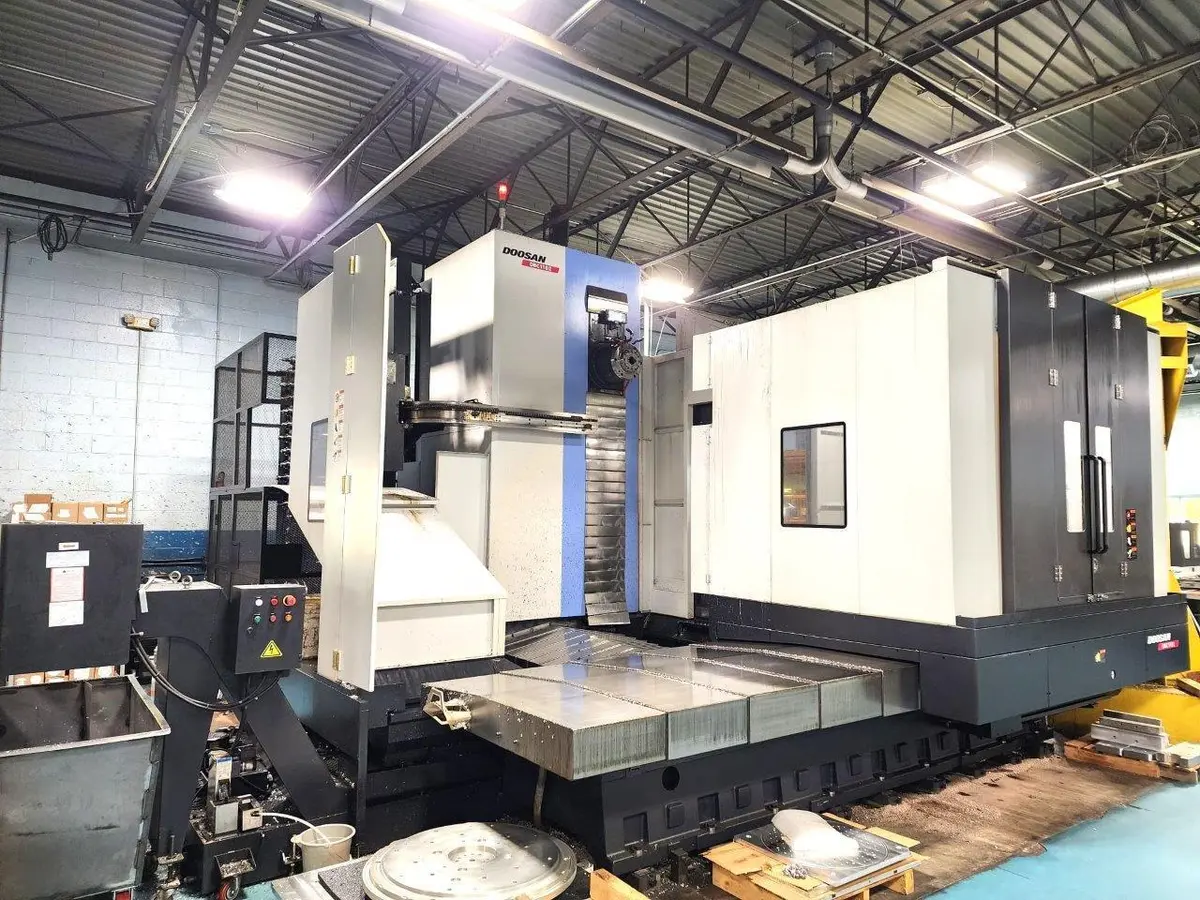

2015 DOOSAN DBC-110 HORIZONTAL BORING MILL
Have one to sell?
ConditionUsed
1 available
2015 Doosan DBC-110 Horizontal Boring Mill offers a 4.33" spindle, 98.42" X-axis, and 78.74" Y-axis travel. Equipped with FANUC 31i-A CNC, B-axis rotary table, 60-tool changer, and coolant. Handles up to 22,046 lbs. Ideal for precision machining needs.
SPINDLE DIAMETER 4.33"
SPINDLE TAPER #50
VERTICAL HEADSTOCK TRAVEL,Y-AXIS 78.74"
TABLE CROSS TRAVEL, X-AXIS 98.42"
SPINDLE TRAVEL, W-AXIS 21.65"
COLUMN INFEED TRAVEL, Z-AXIS 59.05"
DISTANCE SPINDLE CENTER TO TABLETOP 0"-78.7"
SPINDLE NOSE TO TABLE CENTER 22.7"-80.7"
TABLE SIZE, B-AXIS 55.1" X 70.8"
ROTARY TABLE WEIGHT CAPACITY 22,046 LBS
B-AXIS TABLE ROTATION .001 DEGREE
MAXIMUM SPINDLE SPEEDS 4,000 RPM
RAPID TRAVERSE RATE (ALL AXES) 472.44 IPM
CUTTING FEEDRATE (X/Y/Z AXES) 1-236.22 IPM
FANUC 31I-A CNC CONTROL
BUILT-IN B-AXIS ROTARY TABLE
60-STATION AUTOMATIC TOOL CHANGER
COOLANT THROUGH SPINDLE
FULL ENCLOSURE
40 HP MAIN MOTOR
