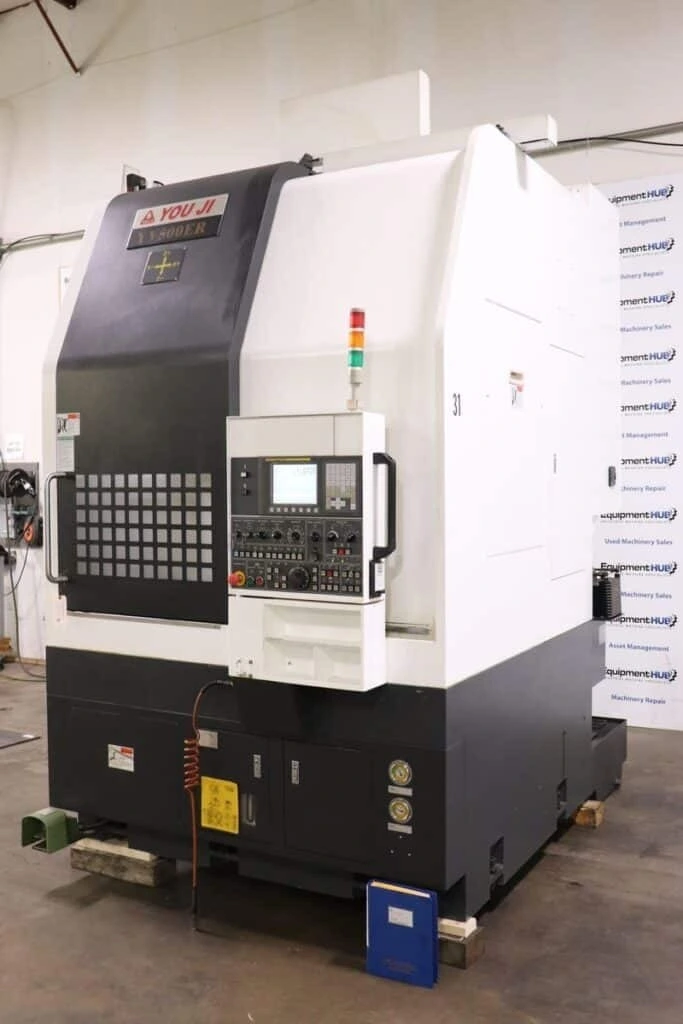

You Ji YV500ER CNC Vertical Turret Lathe (2018)

You Ji YV500ER CNC Vertical Turret Lathe (2018)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERTICAL CNC
Manufacturer:
YOU JI
Model:
YV-500ER
Condition:
Excellent
Year:
2018
Stock #:
210671
Status:
For Sale

Description

You Ji YV500ER vertical CNC lathe, 2018 model, features a 21.65" table, 30 hp motor, and FANUC 0i-TF control. With a 2000 rpm spindle and 18" hydraulic chuck, this lathe is equipped with a coolant tank, pump, and chip conveyor for efficient operations.

Table Dia21.65"549.91 mm
Table Load Capacity2,645 lb1,199.8 kg
Swing29.53"750.06 mm
Turning Height19.68"499.87 mm
Main Motor30 hp
X-Axis Travel16.9316.93
Z-Axis Travel24.41"620.01 mm
Automatic Tool Changer1010
Work Ht-U/R25.6"650.24 mm
Power30 hp22.4 kW
Chuck Size18 in
Main Spindle Turning Diameter Max:21.65 in
Spindle2,000 RPM2000 rpm
ControlCNC (FANUC 0i-TF)CNC (FANUC 0i-TF)
Dimensions130″ L x 75″ W x 134″ H130″ L x 75″ W x 134″ H
Weight26,500 Lbs26,500 Lbs

SPINDLE TAPER A2-11
ELECTRICAL 220V/ 3PH

FANUC 0i-TF CONTROL
18" HYDRAULIC CHUCK
CHIP CONVEYOR
COOLANT TANK & PUMP
