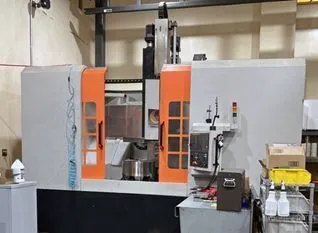

2020 DMTC CGK5112JD

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERTICAL CNC
Manufacturer:
DMTC
Model:
CGK5112JD
Year:
2020
Stock #:
210674
Status:
For Sale

Description

Optimize your production with the DMTC CGK5112JD VTL CNC. Features a 39.4" table, 11,000 lb load capacity, 30 hp motor, and FANUC 0i-TF control. Ready for tasks with a 40" 4-jaw chuck and rapid 31.5 IPM X, Z traverse.

Table Dia39.4"1,000.8 mm
Table Load Capacity11,000 lb4,989.5 kg
Swing47.2"1,198.9 mm
Turning Height39.4"1,000.8 mm
Main Motor30 hp
Number of Ranges22
X-Axis Travel31.5"31.5"
Z-Axis Travel27.28"692.91 mm
Automatic Tool Changer88
Rapid Traverse X, Z31.5 IPM31.5 IPM
Work Ht-U/R39.4"1,000.8 mm
Table Speed400 RPM400 RPM
Power30 hp22.4 kW
Chuck Size40 in
Main Spindle Turning Diameter Max:47.2 in
ControlCNC (FANUC 0i-TF)CNC (FANUC 0i-TF)
Dimensions122" X 106" X 110"122" X 106" X 110"
Weight2420024200

FANUC 0i-TF
40" 4-JAW CHUCK
