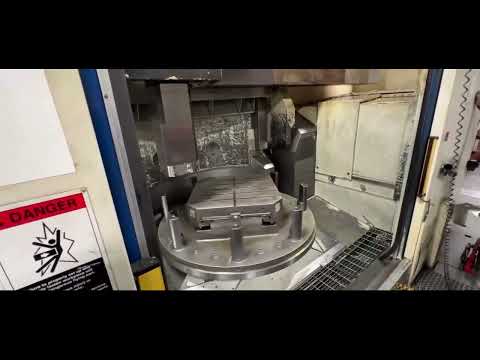

Used 2005 GIDDINGS & LEWIS VTC 1600 | VTL VERTICAL CNC
Have one to sell?
ConditionUsed
1 available

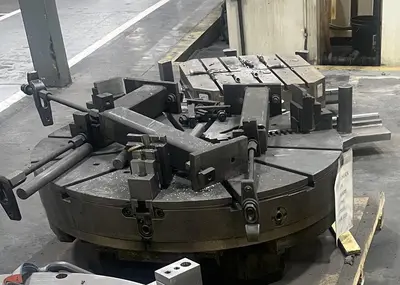

The GIDDINGS & LEWIS VTC 1600 VTL Vertical CNC has a 63" table diameter (chuck not included), a 78.7" swing, and an 85.24" turning height. It features a FANUC 160I-TB CNC, 26-station automatic tool change, linear scales, and more, making it ideal for precision machining tasks.
TABLE DIAMETER ........................ 62.99"
MAXIMUM SWING ......................... 78.74"
MAXIMUM FACING CAPACITY ............... 78.74"
MAXIMUM HEIGHT UNDER RAM FACE ......... 85.24"
VERTICAL RAM TRAVEL ................... 68.89"
LEFT & RIGHT X-AXIS RAM TRAVEL ........ +/- 47.63"
RAM CROSS SECTION ..................... 9.8" X 9.8"
RAPID TRAVERSE, X & Z AXES ............ 787 IPM
FEEDS RATES X & Y AXES ................ .004-787 IPM
FEED THRUST X & Z AXES ................ 34,000 NM
TABLE SPEEDS .......................... 1-400 RPM
TABLE SPEED RANGES .................... 2
TABLE CONSTANT TORQUE ................. 25,000 NM
ELECTRICS ............................. 480/3/60
FANUC 160I-TB CNC CONTROL
26-STATION AUTOMATIC TOOL CHANGE
6-WEDGE LOCK & 20 KENNAMETAL KM80 STATION
MISC. TOOLING
THRU RAM COOLANT
RENISHAW PART PROBE SYSTEM
RENISHAW TOOL PROBE SYSTEM
LINEAR SCALES ON X, Z & V
HAND-HELD PENDANT WITH E-STOP
STEEL SLIDING WAY COVERS
FULL CHIP AND SPLASH ENCLOSURE
CHIP CONVEYOR
100 HP TABLE DRIVE
TOOL OFFSETS - 99
TOOL LIFE MANAGEMENT
