2020 HAAS VF-4SS
Have one to sell?
ConditionUsed
1 available

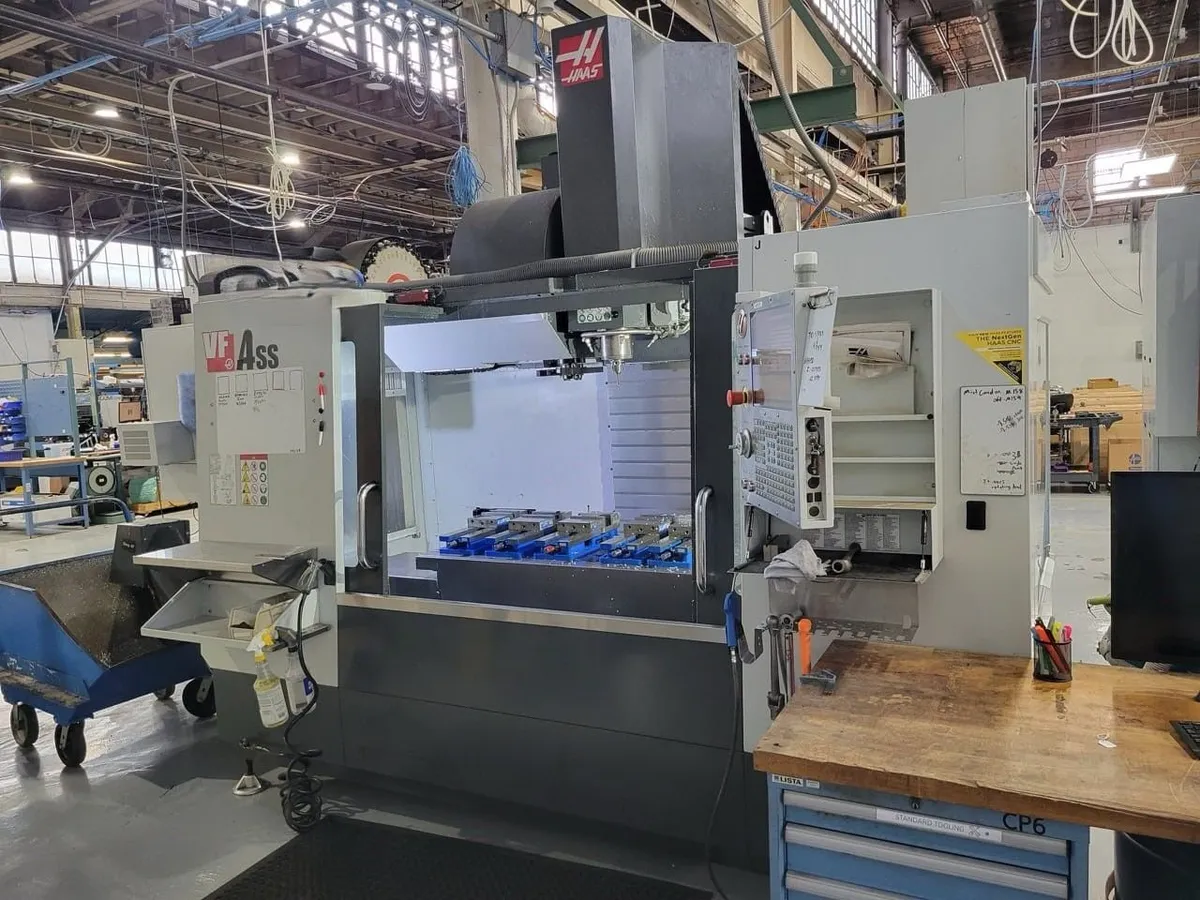

2016 HAAS VF-4SS Vertical Machining Center, equipped with HAAS NextGen Control and high-speed machining. Features 50" x-travel, 12000 rpm spindle speed, and 30 hp motor. Includes through spindle coolant and wireless probing.
HAAS NextGen CONTROL
THROUGH SPINDLE COOLANT
HIGH-SPEED MACHINING
WIRELESS PROBING
CHIP AUGER
PROGRAMMABLE COOLANT NOZZLE.
MIST COLLECTOR
2016 HAAS VF-4SS Vertical Machining Center, equipped with HAAS NextGen Control and high-speed machining. Features 50" x-travel, 12000 rpm spindle speed, and 30 hp motor. Includes through spindle coolant and wireless probing.
Imperial
| X Travel | 50" |
| Y Travel | 20" |
| Z Travel | 25" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 19.5" |
| Table Size (L) | 52" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4.2 - 29.2" |
| Coolant Thru High Pressure | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (HAAS NextGen) |
| Dimensions | 152 in x 99 in x 106 in |
| Weight | 11720 lb |
HAAS NextGen CONTROL
THROUGH SPINDLE COOLANT
HIGH-SPEED MACHINING
WIRELESS PROBING
CHIP AUGER
PROGRAMMABLE COOLANT NOZZLE.
MIST COLLECTOR
