JOHNFORD BMC-110 ROTARY TABLE TYPE HORIZONTAL BORING MILL NEW 2016
Have one to sell?
ConditionUsed
1 available

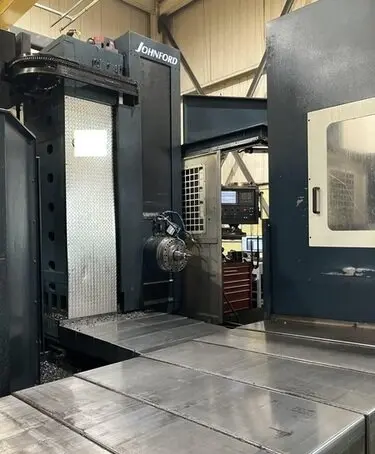

2016 Johnford BMC-110 Horizontal Boring Mill, used. Features a 62.99" x 55.1" table, spindle speed of 3,000 RPM, and CAT 50 spindle taper. Equipped with a FANUC 31IMB control, a full B-axis rotary table, and a chip conveyor. Perfect for CNC operations.
FANUC 31IMB CONTROL
LINEAR SCALES XYZ
FULL “B” AXIS ROTARY TABLE WITH SCALE
300 PSI COOLANT THROUGH SPINDLE
CHIP CONVEYOR
SPINDLE & GEARBOX COOLER
2016 Johnford BMC-110 Horizontal Boring Mill, used. Features a 62.99" x 55.1" table, spindle speed of 3,000 RPM, and CAT 50 spindle taper. Equipped with a FANUC 31IMB control, a full B-axis rotary table, and a chip conveyor. Perfect for CNC operations.
Imperial
| Table Size | 62.99" x 55.1" |
| Table Load Capacity | 26400 |
| Spindle Diameter | 4.33" |
| X-Axis Travel | 78.7" |
| Y-Axis Travel | 70.8" |
| Z-Axis Travel | 63" |
| W-Axis Travel | 21.7" |
| Spindle Speed | 3,000 RPM |
| Spindle Taper | CAT 50 |
| Main Motor | 35 hp |
| Automatic Tool Changer | 60 |
| Control | CNC (FANUC 31iM-B) |
| Weight | 60,000 Lbs. |
FANUC 31IMB CONTROL
LINEAR SCALES XYZ
FULL “B” AXIS ROTARY TABLE WITH SCALE
300 PSI COOLANT THROUGH SPINDLE
CHIP CONVEYOR
SPINDLE & GEARBOX COOLER
