20141 HAAS ST-30SS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
HAAS
Model:
ST-30SS
Condition:
Excellent
Year:
2014
Stock #:
210681
Status:
For Sale

Description

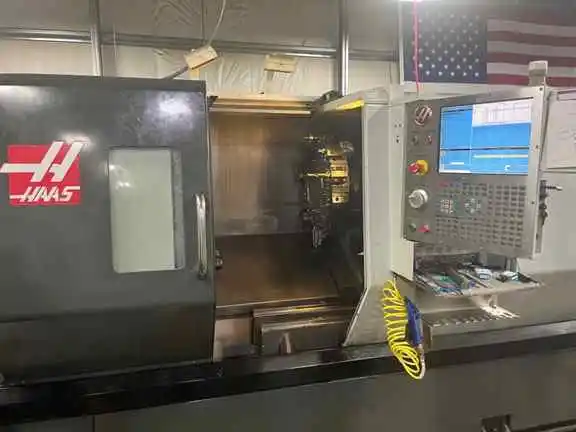

2014 HAAS ST-30SS CNC lathe with 2-axis and Haas CNC control. Features: 30 hp spindle motor, 31.75" max swing, and 12 turret tool positions. Equipped with C-axis, tool presetter, tailstock, and more. Includes hydraulic chuck and parts catcher.

Max. Swing31.75"806.45 mm
Max Turning Diameter16"406.4 mm
Spindle Bore/Max Bar Capacity3.5/3"3.5/3"
Z Travel26"660.4 mm
X Travel12.5"317.5 mm
Machining Length26"660.4 mm
Chuck Size10"254 mm
Chuck TypeHydraullicHydraullic
Spindle Motor30 hp
Spindle Bore3.5 in
Max. Bar Capacity3"76.2 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Parts CatcherYesYes
ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)

HAAS CNC CONTROL
C AXIS (MILLING OPTION)
LIFT UP CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER
RIGID TAPPING
ASSORTED STATIC TOOLING (NO ROTARY TOOLING)
EXPANDED MEMORY
