MAZAK VTC 200B
Have one to sell?
ConditionUsed
1 available

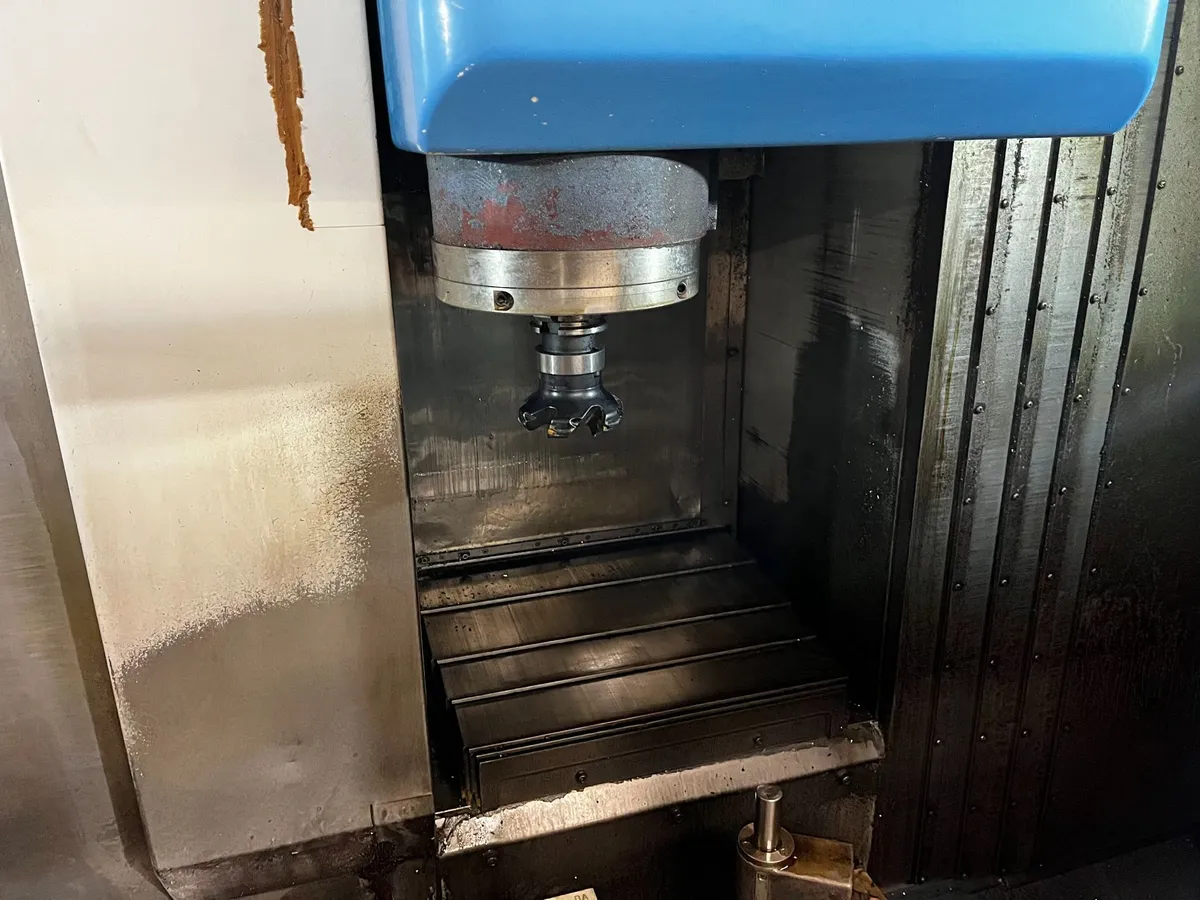

2002 MAZAK VTC 200B vertical machining center: 44.09"x, 20.08"y/z travel, 10,000 rpm spindle, 24-tool ATC, CAT 40 taper. Equipped with MAZATROL FUSION 640, chip conveyor, air blast, coolant thru spindle. Table 57.48"x20.08", 20 hp motor.
TABLE LOAD CAPACITY 1760 LBS
MAX. TOOL LENGTH / WEIGHT 13.78" / 17.6 LBS.
MAZATROL FUSION 640
SUB TABLE
NETWORK CARD
KEYBOARD ACCESS
AIR BLAST
24 STATION MAG
COOLANT THRU SPINDLE
INTERPETAL THREADING
CHIP CONVEYOR
2002 MAZAK VTC 200B vertical machining center: 44.09"x, 20.08"y/z travel, 10,000 rpm spindle, 24-tool ATC, CAT 40 taper. Equipped with MAZATROL FUSION 640, chip conveyor, air blast, coolant thru spindle. Table 57.48"x20.08", 20 hp motor.
Imperial
| X Travel | 44.09" |
| Y Travel | 20.08" |
| Z Travel | 20.08" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 57.48" |
| Table Size (L) | 20.08" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 7.09″ – 27.17″ |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates | 1181 ipm |
| Control | CNC (MAZATROL FUSION 640) |
| Dimensions | 170" X 113" X 108" |
| Weight | 13,200 LBS |
TABLE LOAD CAPACITY 1760 LBS
MAX. TOOL LENGTH / WEIGHT 13.78" / 17.6 LBS.
MAZATROL FUSION 640
SUB TABLE
NETWORK CARD
KEYBOARD ACCESS
AIR BLAST
24 STATION MAG
COOLANT THRU SPINDLE
INTERPETAL THREADING
CHIP CONVEYOR
