2017 HAAS VF-3SSYT

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
VF-3SSYT
Year:
2017
Stock #:
210683
Status:
For Sale

Description

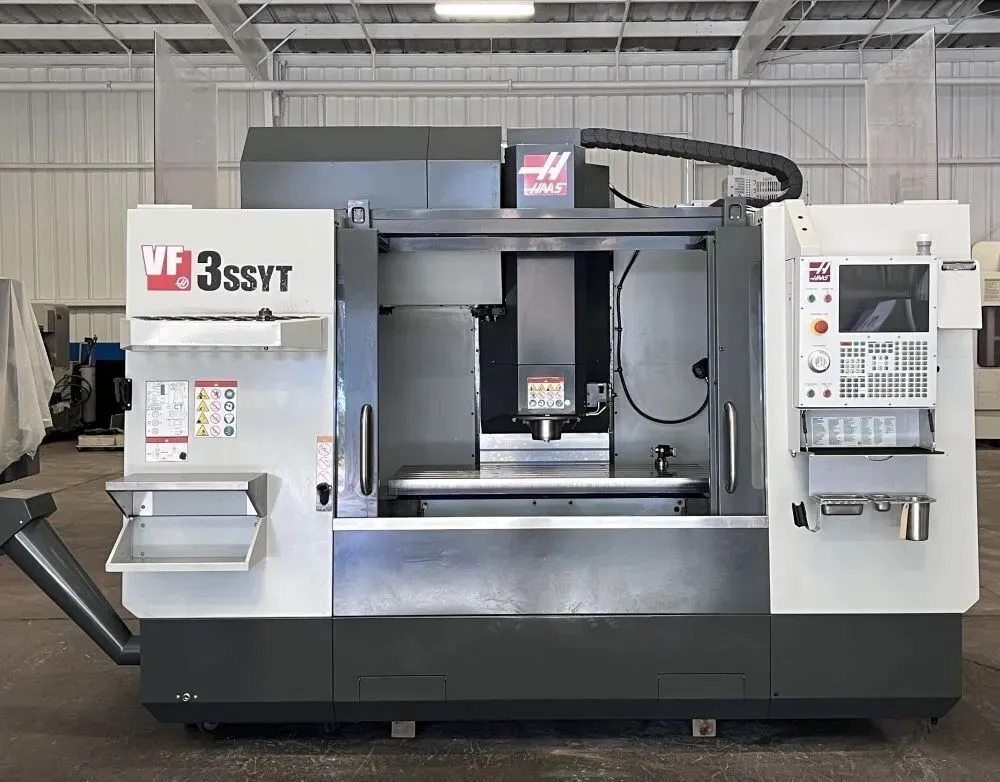

HAAS VF-3SSYT used vertical machining center offers 40" x 26" x 25" travel, 12000 rpm spindle, 30-tool capacity, and upgraded 4th axis drive. Features include probing system, chip auger, and flood coolant. Robust 30 hp motor ensures powerful performance.

X Travel40"1,016 mm
Y Travel26"660.4 mm
Z Travel25"635 mm
Spindle Speed12000 rpm12,000 RPM
Tool Capacity (ATC)3030
Table Size (W)24"609.6 mm
Table Size (L)54"1,371.6 mm
Main Spindle Motor30 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4.2″ – 29.2″4.2″ – 29.2″
Rapid Traverse Rates14001400
ControlCNC (HAAS NextGen)CNC (HAAS NextGen)
Dimensions152″ X 102″ X 109″152″ X 102″ X 109″
Weight15,000 LBS APPROX15,000 LBS APPROX

CUTTING FEED RATES: 833 INCH PER MINUTE
NUMBER OF STD T-SLOTS: 7
T-SLOT WIDTH: 5/8″
MAX WEIGHT ON TABLE: 1750 LBS
MAX TOOL WEIGHT: 12 LBS
MAX TOOL DIA: 2.5″ – 5.0″
MAX TOOL LENGTH: 13″
TOOL CHANGING TIME: 1.80 SECONDS

MPG CONTROL
USER-DEFINABLE MACROS
COORDINATION ROTATION AND SCALING
VISUAL PART PROGRAMMING SYSTEM
RIGID TAPPING
SPINDLE ORIENTATION
USB & ETHERNET PORTS
1GB MEMORY
HAAS CONNECT
DOOR INTERLOCKS
FLOOD COOLANT SYSTEM

HAAS NEXTGEN
4TH AXIS DRIVE (UPGRADED $3195 VALUE INCLUDED)
WIPS-R RENISHAW PROBING SYSTEM (UPGRADED $5795 VALUE INCLUDED)
PROBE RISER BLOCK (UPGRADED $495 VALUE INCLUDED)
CHIP AUGER (UPGRADED $3695 VALUE INCLUDED)
LEVELING PADS
