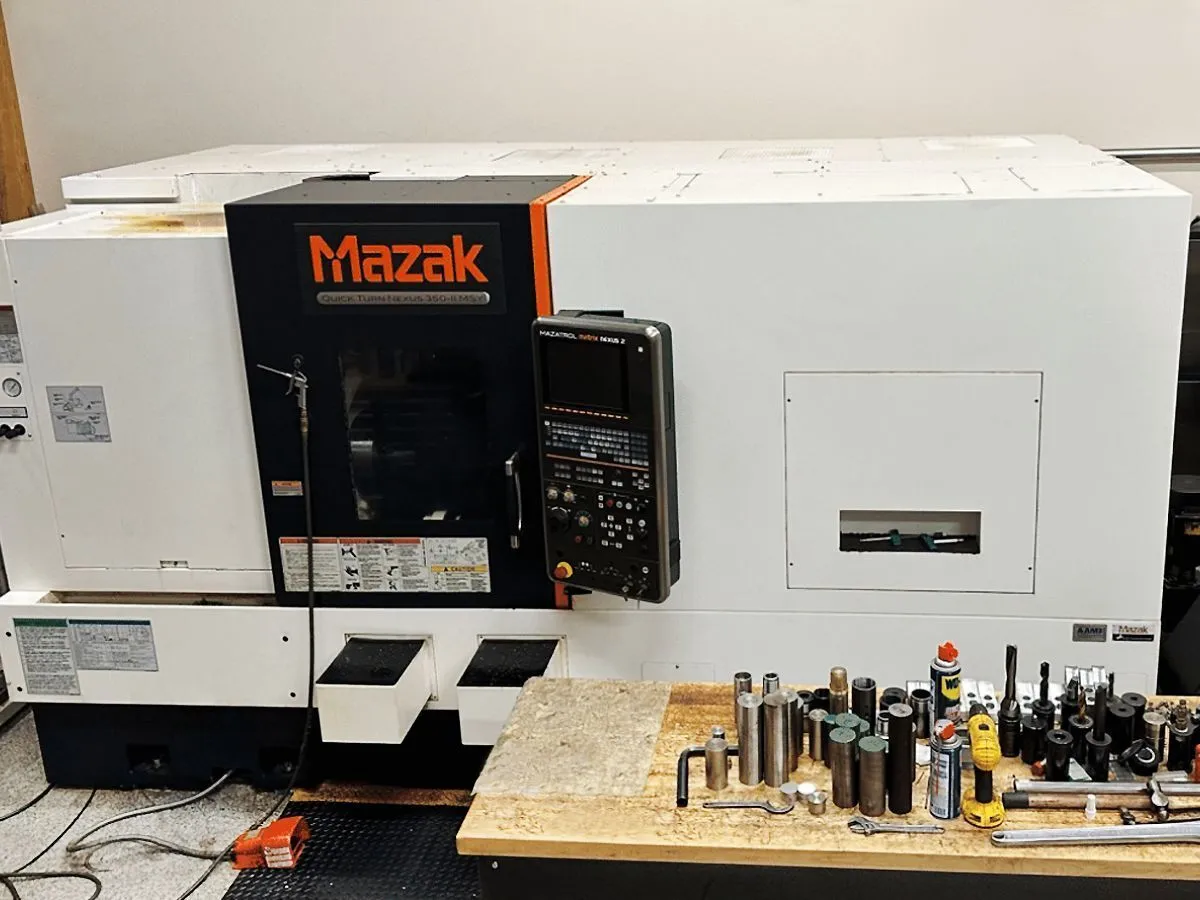

2014 MAZAK QTN350-II MSY
Have one to sell?
ConditionUsed
1 available
2014 MAZAK QTN350-II MSY CNC multi-axis lathe with 29.5" max swing, 62.72" turning diameter, dual hydraulic spindles (12" and 10"), live tooling, MAZATROL MATRIX NEXUS, chip conveyor, tool presetter, bar feeder, and Y-axis capabilities.
MAZATROL MATRIX NEXUS
ROYAL ROTO RACK 53" ($37,950)
HTTPS://ROYALPRODUCTS.COM/PRODUCT-LINE/ROTA-RACK/ (COPY AND PASTE IN BROWSER TO VIEW)
TOOLING IS VDI (ONE TOOL MENTIONED WAS AN ADJUSTABLE VDI MILL HEAD)
TOOLING AND LIVE TOOLING ( TOOL COUNT COMING)
CHIP CONVEYOR
TOOL PRESETTER
BAR FEEDER
PARTS CATCHER
SUB SPINDLE
Y AXIS
2014 MAZAK QTN350-II MSY CNC multi-axis lathe with 29.5" max swing, 62.72" turning diameter, dual hydraulic spindles (12" and 10"), live tooling, MAZATROL MATRIX NEXUS, chip conveyor, tool presetter, bar feeder, and Y-axis capabilities.
Imperial
| Maximum Swing | 29.5" |
| Max Turning Diameter | 62.72" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| X-Axis Travel (X1, X2, X3) | 11" |
| Z-Axis Travel (Z1, Z2, Z3) | 63.12" |
| Y-Axis Travel (Y1, Y2, Y3) | 6" |
| C-Axis Indexing (1, 2) | .0001 |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 25 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1299 |
| Rapid Traverse, Z-Axis | 1299 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 125" x 80" x 80" |
| Weight | 16,500 LBS |
MAZATROL MATRIX NEXUS
ROYAL ROTO RACK 53" ($37,950)
HTTPS://ROYALPRODUCTS.COM/PRODUCT-LINE/ROTA-RACK/ (COPY AND PASTE IN BROWSER TO VIEW)
TOOLING IS VDI (ONE TOOL MENTIONED WAS AN ADJUSTABLE VDI MILL HEAD)
TOOLING AND LIVE TOOLING ( TOOL COUNT COMING)
CHIP CONVEYOR
TOOL PRESETTER
BAR FEEDER
PARTS CATCHER
SUB SPINDLE
Y AXIS
