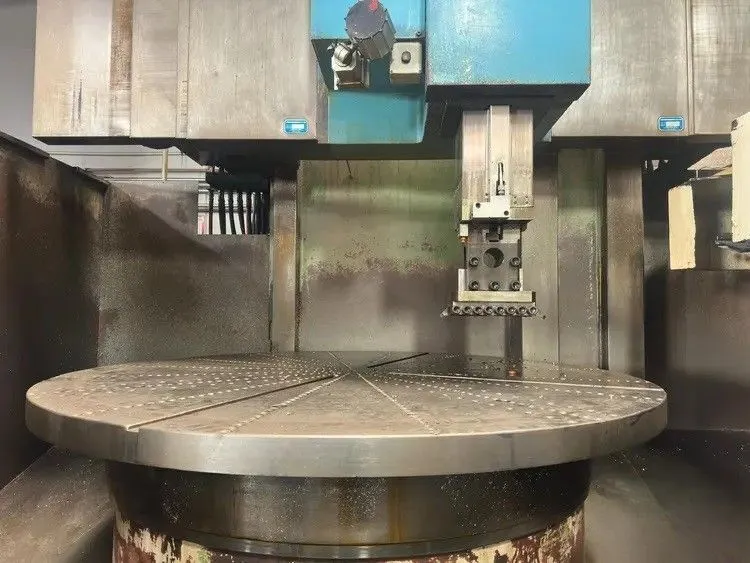

Olympia V60L CNC VTL WITH LIVE MILLING
Have one to sell?
ConditionUsed
1 available
THE OLYMPIA V60L HAS A, 55.1" TABLE, 32 ATC, LIVE MILLING SPINDLE, FANUC 180i-T CONTROL, COOLANT THROUGH BLOCK/TOOL, TOUCH TOOL MEASURING, 16 TOOL BLOCKS INCLUDED
MAXIMUM DISTANCE UNDER RAIL 61"
RAM SIZE 8.3" X 8.3"
MAXIMUM CUTTING FEED RATE 197 IPM
FANUC 18-TB CNC CONTROLS
55.1" CHUCK
60“ SUBPLATE CHUCK W/ 4 JAWS
COOLANT SYSTEM
FULL CHIP AND SPLASH ENCLOSURE
12 POSITION AUTOMATIC TOOL CHANGER
HYDRAULIC POWER UNIT
ASSORTMENT OF TOOL HOLDERS
ALL AVAILABLE MACHINE MANUALS
CHIP CONVEYOR
TABLE OVERLAY FIXTURE PLATE 70" DIAMETER FOR RING MFG.
THE OLYMPIA V60L HAS A, 55.1" TABLE, 32 ATC, LIVE MILLING SPINDLE, FANUC 180i-T CONTROL, COOLANT THROUGH BLOCK/TOOL, TOUCH TOOL MEASURING, 16 TOOL BLOCKS INCLUDED
Imperial
| Table Dia | 55" |
| Maximum Swing | 70.86" |
| Maximum Turning Diameter | 70" |
| Maximum Turning Height | 50 |
| Table Weight Capacity | 35,000 lb |
| Vertical Travel of Ram, Z-Axis | 39.4" |
| Horizontal Railhead Travel, X-Axis | -4.0” / 47.6” |
| Cross Rail Vertical Travel | 39.4" |
| Chuck size | 55 |
| Main Table Motor | 80 |
| Table RPM | 330 RPM |
| Live Spindle Motor | 25 |
| Live Spindle Speed, 2-Ranges | 3000 RPM |
| Automatic Tool Changer | 32 |
| Rapid Traverse X/Z | 393 |
| Control | CNC (FANUC 18-TB) |
| Dimensions | 232” x 208” x 215” |
| Weight | 58,000 LBS |
MAXIMUM DISTANCE UNDER RAIL 61"
RAM SIZE 8.3" X 8.3"
MAXIMUM CUTTING FEED RATE 197 IPM
FANUC 18-TB CNC CONTROLS
55.1" CHUCK
60“ SUBPLATE CHUCK W/ 4 JAWS
COOLANT SYSTEM
FULL CHIP AND SPLASH ENCLOSURE
12 POSITION AUTOMATIC TOOL CHANGER
HYDRAULIC POWER UNIT
ASSORTMENT OF TOOL HOLDERS
ALL AVAILABLE MACHINE MANUALS
CHIP CONVEYOR
TABLE OVERLAY FIXTURE PLATE 70" DIAMETER FOR RING MFG.
