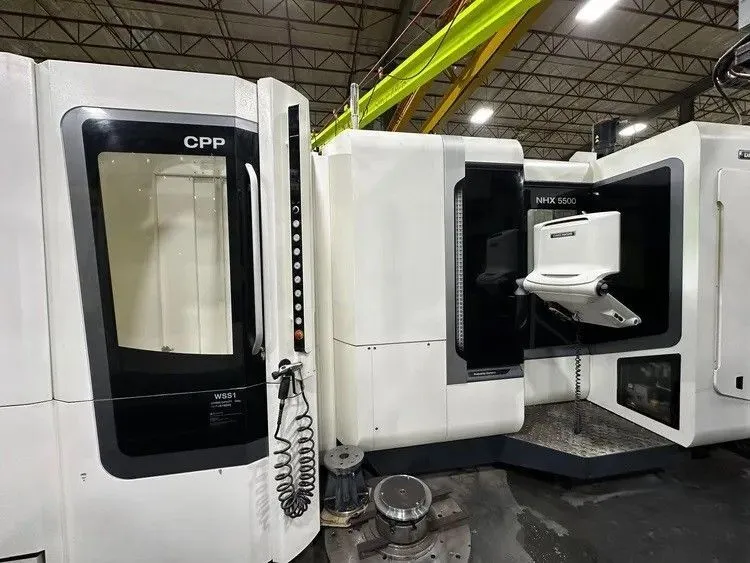

DMG MORI NHX 5500/ 4 AXIS HORIZONTAL
Have one to sell?
ConditionUsed
1 available
2016 DMG MORI NHX 5500/4 Axis Horizontal Machining Center—used. Features include: HSK 100 spindle, 54 hp motor, 12,000 rpm, 6 pallets, and 60-tool capacity. Equipped with FANUC CNC, through-spindle coolant, and full 4th axis rotary table.
FANUC F31iB CNC CONTROL WITH CELOS - ERGOLINE TOUCH
SIX PALLETS SYSTEM (CPP) AND LOADING STATION (WSS1)
HSK 100A SPINDLE
THROUGH-SPINDLE COOLANT SYSTEM
LNS CHIPBLASTER HIGH PRESSURE COOLANT WITH CHILLER
FULL 4TH AXIS ROTARY TABLE
HYDRAULIC CLAMPING THRU PALLET
TOOL MAGAZINE: CAPACITY 60 TOOLS
CHIP CONVEYOR
COOLANT PUMPS, MOTORS & TANK
2016 DMG MORI NHX 5500/4 Axis Horizontal Machining Center—used. Features include: HSK 100 spindle, 54 hp motor, 12,000 rpm, 6 pallets, and 60-tool capacity. Equipped with FANUC CNC, through-spindle coolant, and full 4th axis rotary table.
Imperial
| X-AXIS TRAVEL | 31.5" |
| Y-AXIS TRAVEL | 31.5" |
| Z-AXIS TRAVEL | 34.6" |
| SPINDLE TAPER | HSK 100 |
| SPINDLE DRIVE MOTOR | 54 hp |
| SPINDLE SPEED | 12000 rpm |
| RAPID TRAVERSE | 2362 |
| TOOL CAPACITY (ATC) | 60 |
| NUMBER OF PALLETS | 6 |
| PALLET SIZE | 19.7" X 19.7" |
| PALLET SIZE (W) | 19.7" |
| PALLET SIZE (L) | 19.7" |
| PALLET LOAD CAPACITY | 2200 lb |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (FANUC F31iB) |
| Dimensions | 132" x 215" x 122" |
| Weight | 33000 LBS |
FANUC F31iB CNC CONTROL WITH CELOS - ERGOLINE TOUCH
SIX PALLETS SYSTEM (CPP) AND LOADING STATION (WSS1)
HSK 100A SPINDLE
THROUGH-SPINDLE COOLANT SYSTEM
LNS CHIPBLASTER HIGH PRESSURE COOLANT WITH CHILLER
FULL 4TH AXIS ROTARY TABLE
HYDRAULIC CLAMPING THRU PALLET
TOOL MAGAZINE: CAPACITY 60 TOOLS
CHIP CONVEYOR
COOLANT PUMPS, MOTORS & TANK
