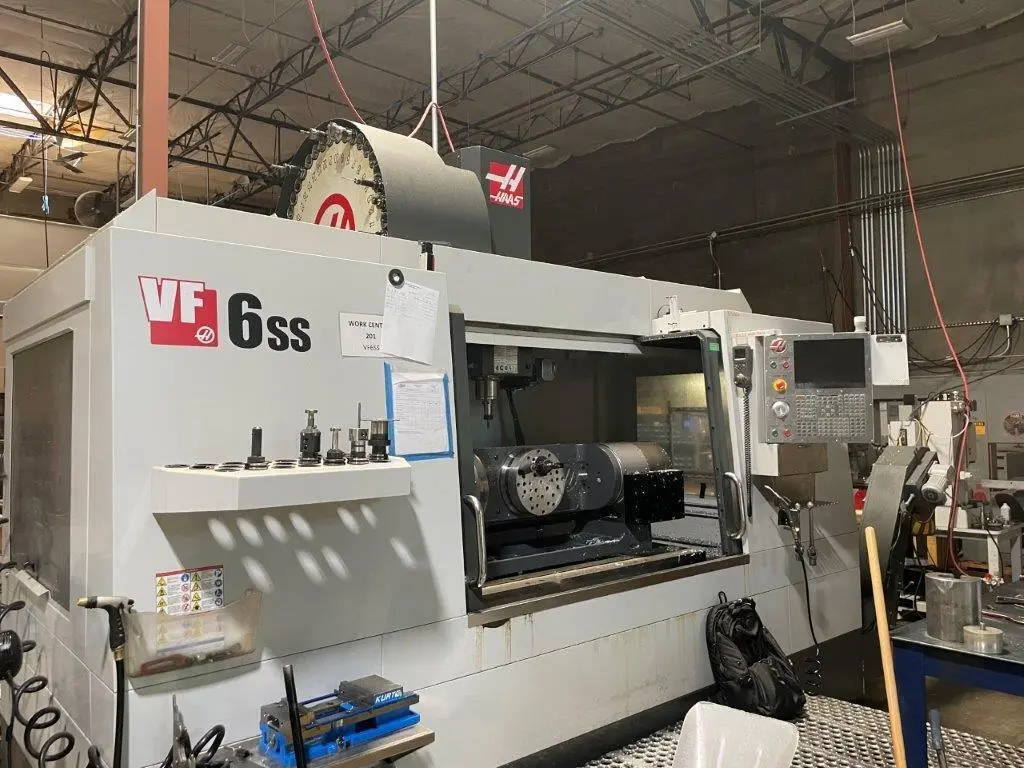

HAAS VF-6SS 5-AXIS WITH TR310 TRUNION
Have one to sell?
ConditionUsed
1 available
2014 HAAS VF-6SS 5-Axis, fully equipped with HAAS CNC control, TR310 trunnion, 5th axis drive, chip conveyor, and high-pressure coolant system. Offers 64"x32"x30" travel, 12000 rpm spindle, 24-tool ATC, and a robust 30 hp motor.
RAPID RATES
X-AXIS: 900 IPM
Y-AXIS: 1,200 IPM
Z-AXIS: 1,200 IPM
TOOL-TO-TOOL 2.3 S
CHIP-TO-CHIP 3.2 S
MAX CUTTING 833 IPM
HAAS CNC CONTROL
4TH AXIS DRIVE
5TH AXIS DRIVE
CHIP CONVEYOR
8" RISER IN COLUMN
QUAD AUGER
COOLANT THROUGH SPINDLE
PROGRAMMABLE COOLANT
TR310 5 AXIS TABLE
2014 HAAS VF-6SS 5-Axis, fully equipped with HAAS CNC control, TR310 trunnion, 5th axis drive, chip conveyor, and high-pressure coolant system. Offers 64"x32"x30" travel, 12000 rpm spindle, 24-tool ATC, and a robust 30 hp motor.
Imperial
| X Travel | 64" |
| Y Travel | 32" |
| Z Travel | 30" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 64" |
| Table Size (L) | 28" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4" - 34" |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type A-Axis Trunnion Tilt Range | TR310 |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Control | CNC (HAAS CNC CONTROL) |
| Dimensions | 195" X 102" X 130" |
| Weight | 22,300 LBS |
RAPID RATES
X-AXIS: 900 IPM
Y-AXIS: 1,200 IPM
Z-AXIS: 1,200 IPM
TOOL-TO-TOOL 2.3 S
CHIP-TO-CHIP 3.2 S
MAX CUTTING 833 IPM
HAAS CNC CONTROL
4TH AXIS DRIVE
5TH AXIS DRIVE
CHIP CONVEYOR
8" RISER IN COLUMN
QUAD AUGER
COOLANT THROUGH SPINDLE
PROGRAMMABLE COOLANT
TR310 5 AXIS TABLE
