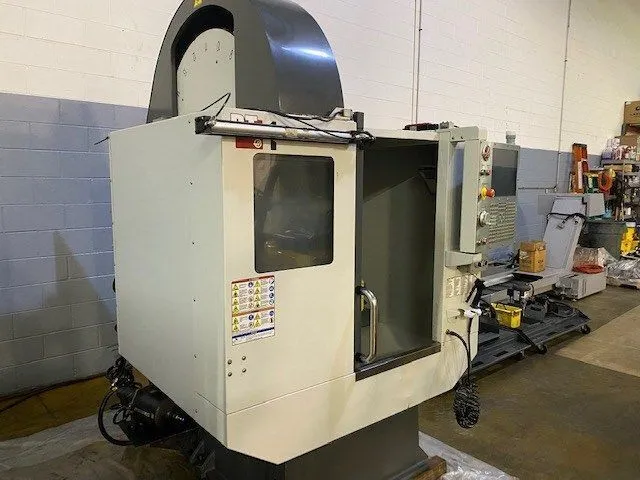

2014 HAAS DT-1 DRILL AND TAPPING CENTER W/ ROTARY TABLE
Have one to sell?
ConditionUsed
1 available
2014 HAAS DT-1 Vertical Machining Center with Rotary Table, equipped with HAAS CNC Control, Coolant Through Spindle, Auto Doors, and Nikken CNCZ 180 4th Axis. Features 21-tool capacity, 15 hp motor, and 10000 rpm spindle speed. Fully enclosed with rigid tapping.
Tool Diameter 2.0"
Tool Length 7"
Cutting Feed Rate 1200 IPM
HAAS CNC CONTROL
COOLANT THROUGH SPINDLE
FULL ENCLOSURES
AUTO DOORS
BK MIKRO WHISKER TOOL BREAKAGE
COOLANT GUN
NIKKEN CNCZ 180 4TH AXIS ROTARY TABLE
RIGID TAPPING
ROBOT INTERFACE
ALL AVAILABLE MANUALS
2014 HAAS DT-1 Vertical Machining Center with Rotary Table, equipped with HAAS CNC Control, Coolant Through Spindle, Auto Doors, and Nikken CNCZ 180 4th Axis. Features 21-tool capacity, 15 hp motor, and 10000 rpm spindle speed. Fully enclosed with rigid tapping.
Imperial
| X Travel | 20" |
| Y Travel | 16" |
| Z Travel | 15.5" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 21 |
| Table Size (W) | 16" |
| Table Size (L) | 26" |
| Main Spindle Motor | 15 hp |
| Spindle Taper | CAT 30 |
| Spindle Nose To Table Top | 6" ~ 21.5" |
| 4th Axis Rotary Table Size | 7" |
| Coolant Thru | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 2400 |
| Control | CNC (HAAS) |
| Weight | 5500 |
Tool Diameter 2.0"
Tool Length 7"
Cutting Feed Rate 1200 IPM
HAAS CNC CONTROL
COOLANT THROUGH SPINDLE
FULL ENCLOSURES
AUTO DOORS
BK MIKRO WHISKER TOOL BREAKAGE
COOLANT GUN
NIKKEN CNCZ 180 4TH AXIS ROTARY TABLE
RIGID TAPPING
ROBOT INTERFACE
ALL AVAILABLE MANUALS
