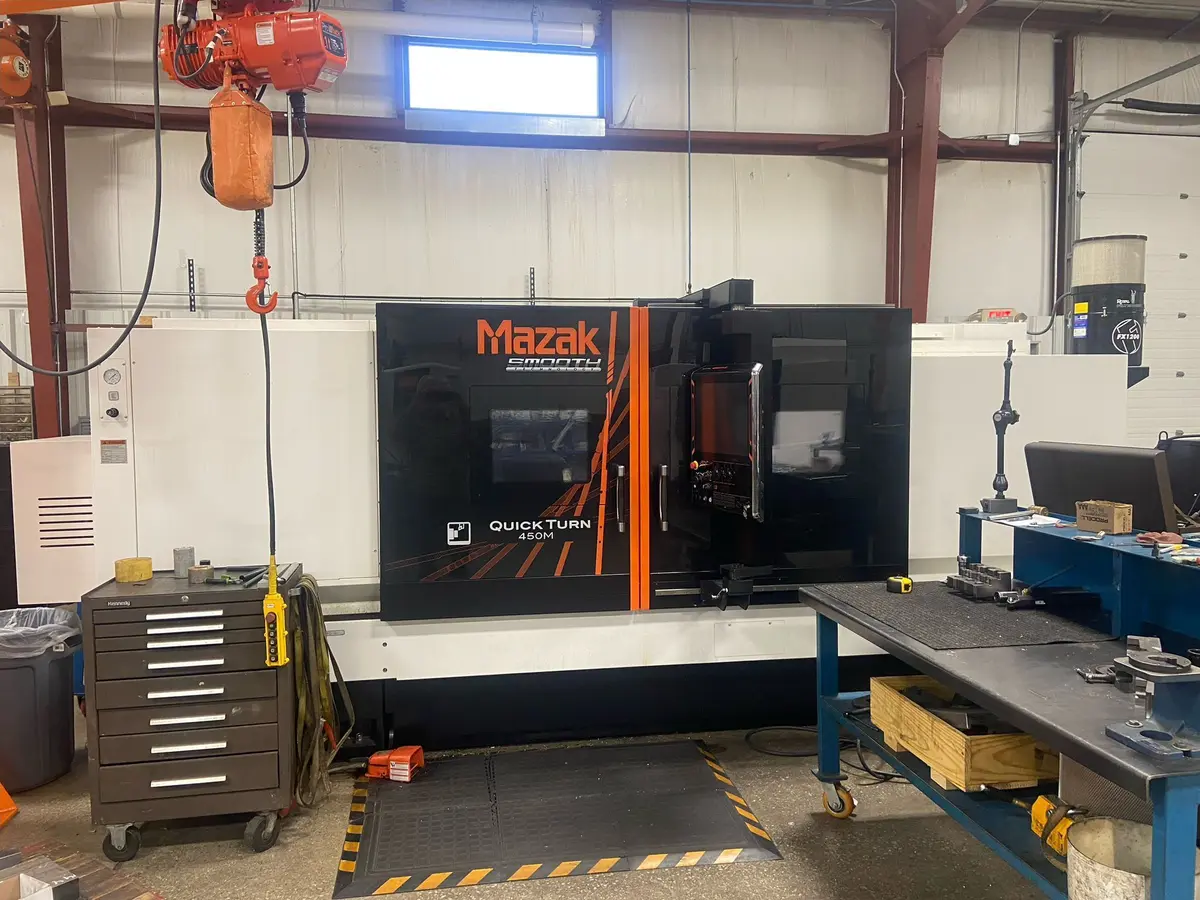

2022 MAZAK QT 450M WITH SMOOTH X CONTROL
Have one to sell?
ConditionUsed
1 available
Explore precision with the 2022 MAZAK QT 450M CNC Lathe. Offering a 33.27" swing, 80.4" cutting length, and SmoothX control, this multi-axis lathe is equipped with a chip conveyor, live tools, and various holders. Perfect for advanced machining needs.
MAZATROL SmoothX CONTROL
CHIP CONVEYOR
TOOLING:
TWO HORIZONTAL ONE VERTICAL LIVE TOOLS. WITH A COUPLE EXTRA ID HOLDERS AND 4 TWO TWO-INCH BORING BAR HOLDERS.
TWO FACE TURNING HOLDERS.
4 OD TURNING HOLDERS.
APROX. 30 SETS OF CHUCK JAWS
Explore precision with the 2022 MAZAK QT 450M CNC Lathe. Offering a 33.27" swing, 80.4" cutting length, and SmoothX control, this multi-axis lathe is equipped with a chip conveyor, live tools, and various holders. Perfect for advanced machining needs.
Imperial
| Maximum Swing | 33.268" |
| Max Turning Diameter | 22.83" |
| Main Spindle Bore/Max Bar Capacity | 7.12"/ 6.49" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 80.4" |
| X-Axis Travel (X1, X2, X3) | 12.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 80.24 |
| C-Axis Indexing (1, 2) | .001 Degrees |
| Main Spindle Chuck Size | 18" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 7.12" |
| Main Spindle Maximum Bar Work | 6.49" |
| Main Spindle Speed | 2,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 2000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMOOTH X) |
| Weight | 26,800 LBS. |
MAZATROL SmoothX CONTROL
CHIP CONVEYOR
TOOLING:
TWO HORIZONTAL ONE VERTICAL LIVE TOOLS. WITH A COUPLE EXTRA ID HOLDERS AND 4 TWO TWO-INCH BORING BAR HOLDERS.
TWO FACE TURNING HOLDERS.
4 OD TURNING HOLDERS.
APROX. 30 SETS OF CHUCK JAWS
