2017 DOOSAN DNM 5700 4-AXIS VERTICAL
Have one to sell?
ConditionUsed
1 available

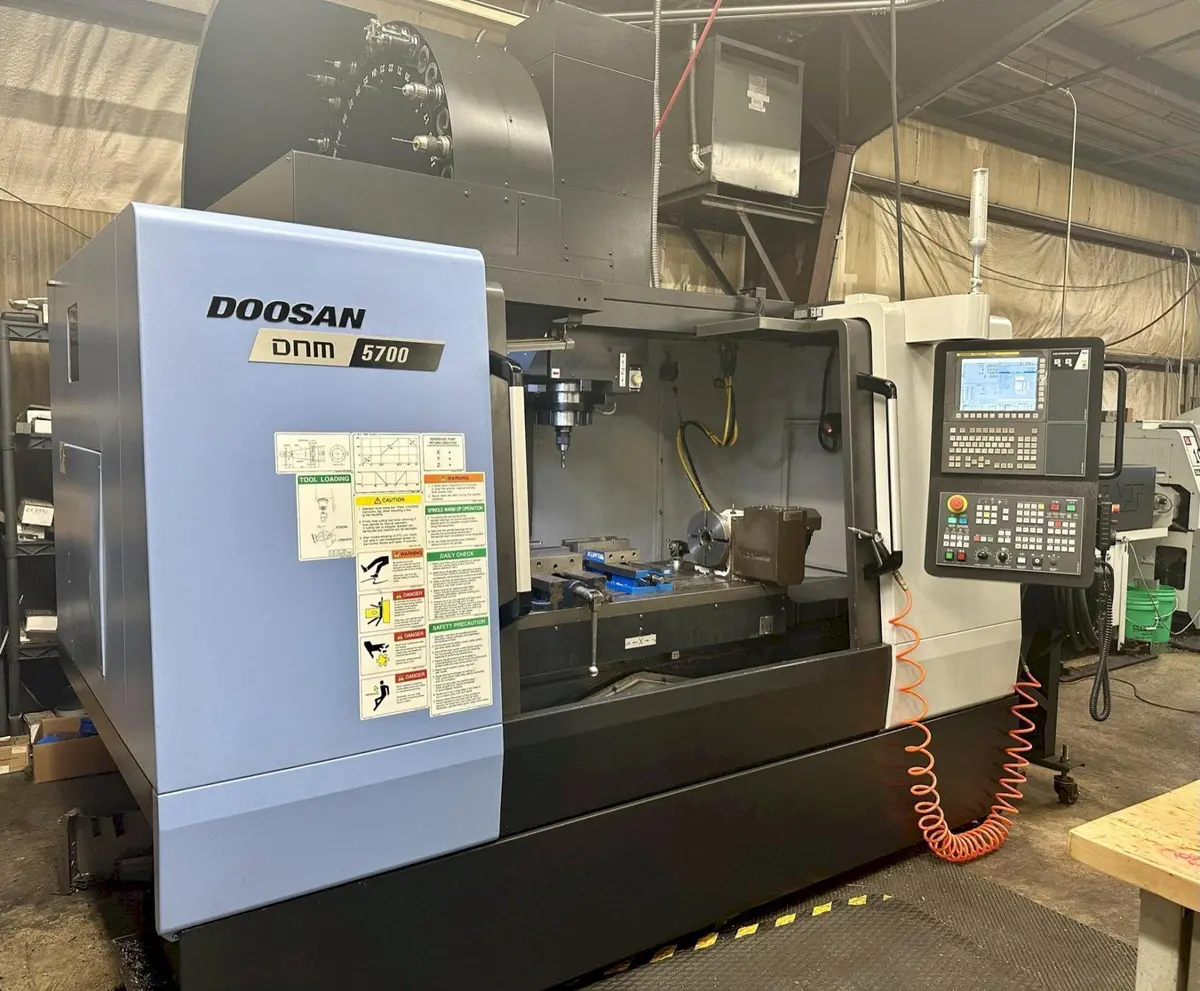

2017 Doosan DNM 5700 4-Axis Vertical Machining Center available. Key specs: 41.3"x22.4"x20.1" travel, 15000 rpm spindle, 40-tool changer, FANUC CNC, 1800 cut hours. Includes chip conveyor, coolant system, KOMO 4th Axis Rotary Table.
Electrics: 220/3/60
FANUC I SERIES CNC CONTROL
15000 RPM SPINDLE (UPGRADED OPTION)
40 STATION TOOL CHANGER (UPGRADED OPTION)
KOMO RWE-160R 4TH AXIS ROTARY TABLE,
CHIP CONVEYOR & COOLANT SYSTEM
***1800 CUT HOURS***
2017 Doosan DNM 5700 4-Axis Vertical Machining Center available. Key specs: 41.3"x22.4"x20.1" travel, 15000 rpm spindle, 40-tool changer, FANUC CNC, 1800 cut hours. Includes chip conveyor, coolant system, KOMO 4th Axis Rotary Table.
Imperial
| X Travel | 41.3" |
| Y Travel | 22.4" |
| Z Travel | 20.1" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 40 |
| Table Size (W) | 22.4" |
| Table Size (L) | 55.1" |
| Main Spindle Motor | 25 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 5.9" - 26" |
| 4 Axis Table Rotation | .001 Degree Positioning Only 360000 Degrees |
| 4th Axis Rotary Table Size | 6.3" |
| Rapid Traverse Rates | 1417 |
| Chip Conveyor | YES |
| Control | CNC (FANUC 0i) |
| Dimensions | 120" x 118" x 106" |
| Weight | 15,000 LBS |
Electrics: 220/3/60
FANUC I SERIES CNC CONTROL
15000 RPM SPINDLE (UPGRADED OPTION)
40 STATION TOOL CHANGER (UPGRADED OPTION)
KOMO RWE-160R 4TH AXIS ROTARY TABLE,
CHIP CONVEYOR & COOLANT SYSTEM
***1800 CUT HOURS***
