2022 HAAS VS-3
Have one to sell?
ConditionUsed
1 available

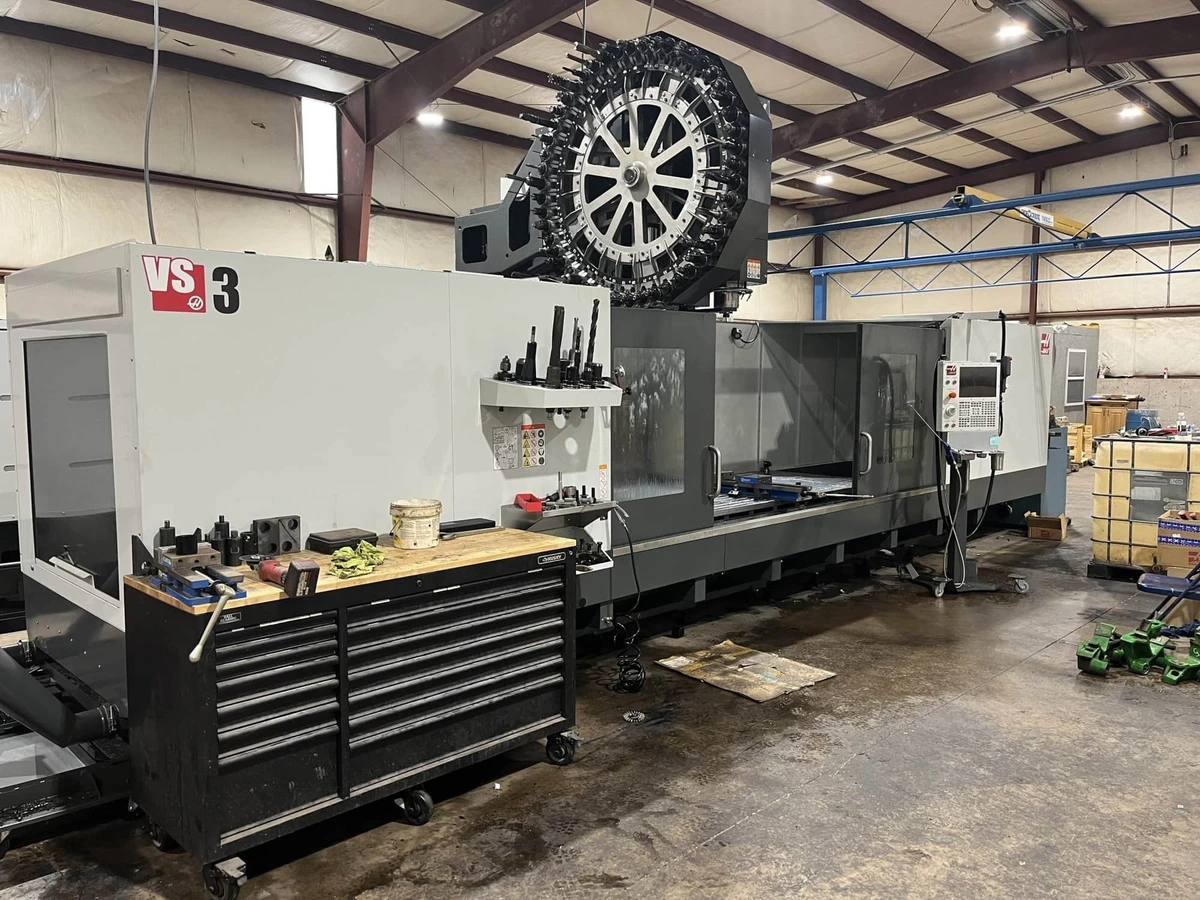

2022 HAAS VS-3 vertical machining center with 150" x 50" x 50" travels and 10,000 rpm spindle speed. Equipped with 51-tool capacity, CAT 50 taper, through-spindle coolant, 4th-axis drive, wireless probing, and HAAS Next Gen Control. Ideal for precision tasks.
Thickness: 1.9″
Max Weight on Table: 10,000 Lbs.
Coolant Capacity: 95 Gal.
Domestic Pallet, Column Assembly: 180 in x 102 in x 146 in
Domestic Pallet, Table Assembly: 368 in x 82 in x 99 in
Weight, Column Assembly, Domestic: 23,060 lbs.
Weight, Table Assembly, Domestic: 22,580 lbs.
HAAS NEXT GEN CONTROL
50 + 1 TOOL CHANGER
THROUGH-SPINDLE COOLANT
4TH-AXIS DRIVE AND WIRING
WIRELESS INTUITIVE PROBING SYSTEM
HIGH-PRESSURE FLOOD COOLANT
64 GB EXPANDED MEMORY
INTERNAL HIGH-VOLTAGE ISOLATED TRANSFORMER
COOLANT TANK OIL SKIMMER
CHIP AUGER
2022 HAAS VS-3 vertical machining center with 150" x 50" x 50" travels and 10,000 rpm spindle speed. Equipped with 51-tool capacity, CAT 50 taper, through-spindle coolant, 4th-axis drive, wireless probing, and HAAS Next Gen Control. Ideal for precision tasks.
Imperial
| X Travel | 150" |
| Y Travel | 50" |
| Z Travel | 50" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 51 |
| Table Size (W) | 49" |
| Table Size (L) | 153" |
| Main Spindle Motor | 60 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 5" - 55" |
| Coolant Thru | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC |
Thickness: 1.9″
Max Weight on Table: 10,000 Lbs.
Coolant Capacity: 95 Gal.
Domestic Pallet, Column Assembly: 180 in x 102 in x 146 in
Domestic Pallet, Table Assembly: 368 in x 82 in x 99 in
Weight, Column Assembly, Domestic: 23,060 lbs.
Weight, Table Assembly, Domestic: 22,580 lbs.
HAAS NEXT GEN CONTROL
50 + 1 TOOL CHANGER
THROUGH-SPINDLE COOLANT
4TH-AXIS DRIVE AND WIRING
WIRELESS INTUITIVE PROBING SYSTEM
HIGH-PRESSURE FLOOD COOLANT
64 GB EXPANDED MEMORY
INTERNAL HIGH-VOLTAGE ISOLATED TRANSFORMER
COOLANT TANK OIL SKIMMER
CHIP AUGER
