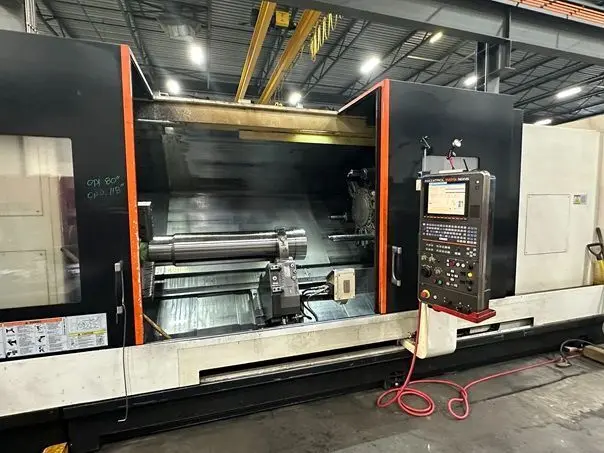

MAZAK SLANT TURN NEXUS 550M-3000U (2011)
Have one to sell?
ConditionUsed
1 available
Discover the MAZAK SLANT TURN NEXUS 550M-3000U CNC Lathe from 2011, designed for precision with multi-axis capabilities. Features a 36" turning diameter, 24.8" air chuck, and 60 HP main spindle. Includes MAZATROL MATRIX control and hydraulic steady rest.
MAXIMUM SPINDLE TORQUE: 5,193 FT/LBS
TURREY INDEX TIME: 5" SEC.
TAILSTOCK TRAVEL BODY: 86.75"
MAZATROL MATRIX CONTROL
SCHUNK ROTA TB 630 380 AIR CHUCK
MILLING / LIVE TOOLING
HYDRAULIC STEADY REST MODEL K5.1 - ZSW 3.94-16.14”
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
ABSOLUTE POSITIONING
CHIP CONVEYOR
Discover the MAZAK SLANT TURN NEXUS 550M-3000U CNC Lathe from 2011, designed for precision with multi-axis capabilities. Features a 36" turning diameter, 24.8" air chuck, and 60 HP main spindle. Includes MAZATROL MATRIX control and hydraulic steady rest.
Imperial
| Maximum Swing | 40.9" |
| Max Turning Diameter | 36" |
| Main Spindle Bore/Max Bar Capacity | 12.5" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Swing Over Cross Slide | 29.4" |
| X-Axis Travel (X1, X2, X3) | 18.25" |
| Z-Axis Travel (Z1, Z2, Z3) | 120" |
| C-Axis Indexing (1, 2) | 360,000 N/C Contouring |
| Main Spindle Chuck Size | 24.8" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 12.5" |
| Main Spindle Speed | 750 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 60 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Rapid Traverse, X-Axis | 787 |
| Rapid Traverse, Z-Axis | 945 |
| Control | CNC (MAZATROL MATRIX) |
| Weight | 41,887 LBS |
MAXIMUM SPINDLE TORQUE: 5,193 FT/LBS
TURREY INDEX TIME: 5" SEC.
TAILSTOCK TRAVEL BODY: 86.75"
MAZATROL MATRIX CONTROL
SCHUNK ROTA TB 630 380 AIR CHUCK
MILLING / LIVE TOOLING
HYDRAULIC STEADY REST MODEL K5.1 - ZSW 3.94-16.14”
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
ABSOLUTE POSITIONING
CHIP CONVEYOR
