2013/ 14 MATSUURA MAM 72-63V 16 PALLETS WITH FASTEMS SYSTEM - 5 AXIS
Have one to sell?
ConditionUsed
1 available

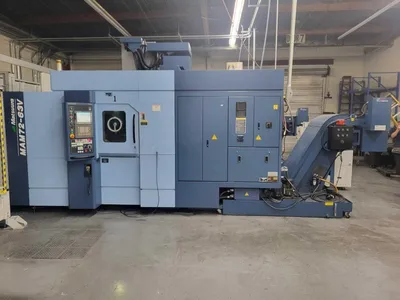

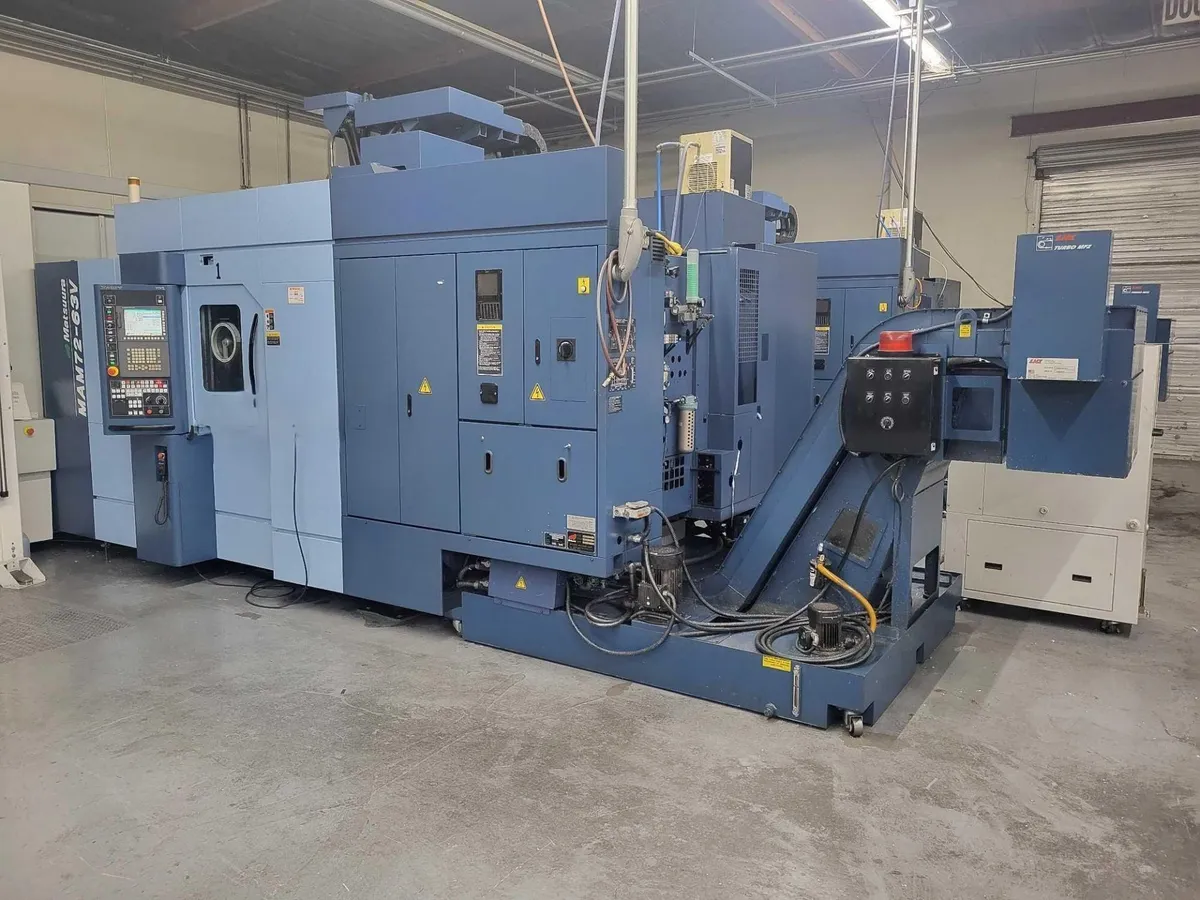

Explore precision with the 2014 MATSUURA MAM 72-63V. This vertical 5-axis machining center boasts 16 pallets and a Fastems system, with rapid traverse rates and powerful spindle speed for enhanced productivity. Ideal for complex manufacturing.
2014 FASTEMS FPC 750 FLEXIBLE PALLET CONTAINER
SPECIFICATIONS:
NOMINAL MACHINE PALLET SIZE 500 X 500 MM (19.68" x 19.68")
LOAD SIZE (X X Z) 750 X 750 MM (29.52" x 29.52")
LOAD ROTATIONAL DIAMETER 800MM (31.5")
LOAD HEIGHT 900MM (35.4")
LOAD WEIGHT 750KG (1650 LBS
STORAGE CAPACITY BY CONTAINER 12
LENGTH (CONTAINER) 6880 MM (267.71")
WIDTH (CONTAINER) 2250 MM (88.59")
HEIGHT (CONTAINER) 2800 MM (110.24")
EACH MACHINE HAS
1- OMP 400 PROBE
1 - NC-4 PROBE
1 - LNS CHIP CONVEYOR
1 - ATS COOLJET - 1000 PSI COOLANT THRU
1 - SPIRAL AUGER
1 - 3 LIGHT TOWER
2 - PALLETS FOR EACH MACHINE
12 - PALLETS WITH THE FASTEMS SYSTEM
SEE PICTURES FOR PALLETS, TOOLING, ETC.
