2022 MAZAK QT EZ-12MSY
Have one to sell?
ConditionUsed
1 available
For sale: 2022 MAZAK QT EZ-12MSY multi-axis CNC lathe. Features include 27.4" max swing, sub-spindle, 4,000 RPM main spindle speed, 12-position turret, Mazatrol SmoothEZ control, high-powered coolant, and automatic tool eye. Equipped with engraving function.

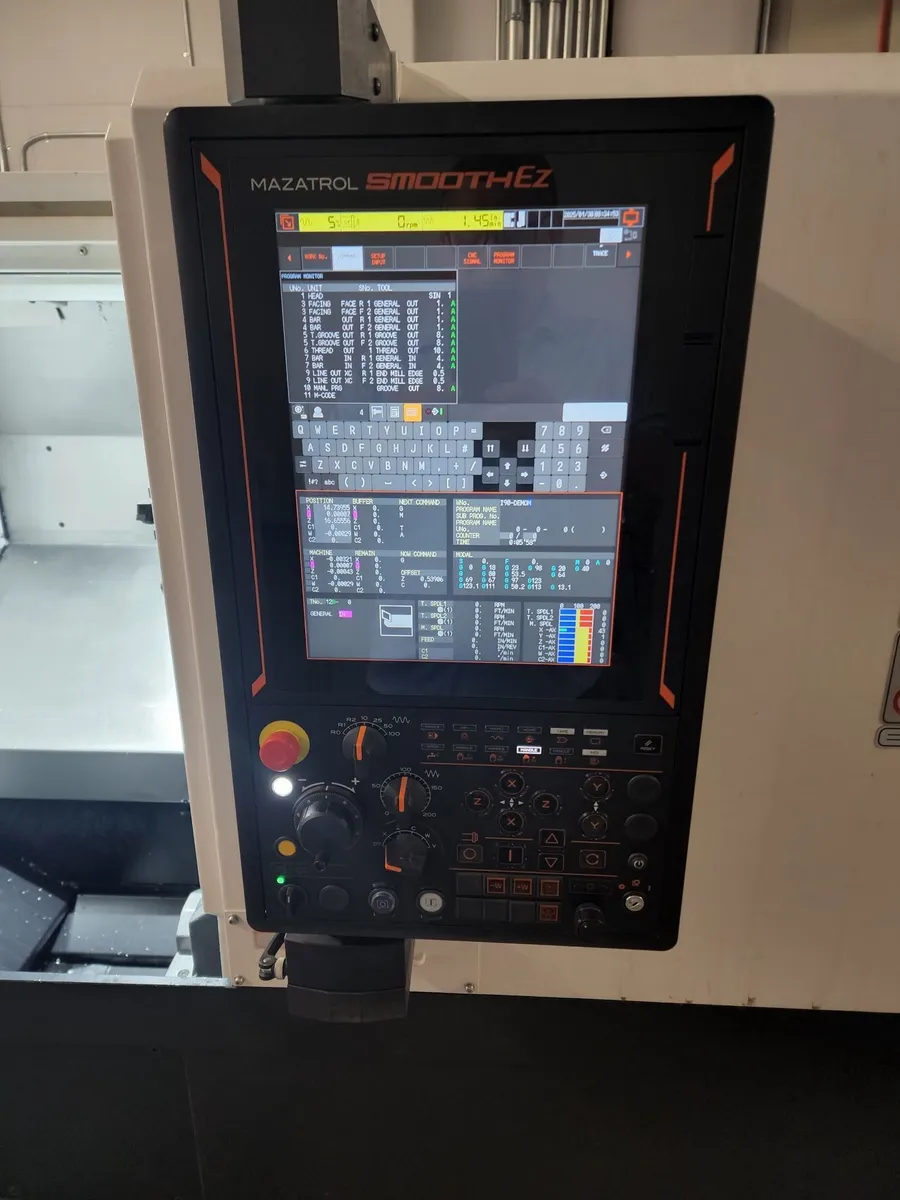

MAZATROL SmoothEZ
HIGH POWERED COOLANT - 59 PSI/ 13 GPM
COOLANT CHILLER
AUTOMATIC TOOL EYE
SMOOTH ENGRAVING FUNCTION
For sale: 2022 MAZAK QT EZ-12MSY multi-axis CNC lathe. Features include 27.4" max swing, sub-spindle, 4,000 RPM main spindle speed, 12-position turret, Mazatrol SmoothEZ control, high-powered coolant, and automatic tool eye. Equipped with engraving function.
Imperial
| Maximum Swing | 27.4" |
| Max Turning Diameter | 13.5" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | SUB-SPINDLE |
| Maximum Cutting Length | 21.47" |
| X-Axis Travel (X1, X2, X3) | 8.5 |
| Z-Axis Travel (Z1, Z2, Z3) | 23.75 |
| Y-Axis Travel (Y1, Y2, Y3) | 4 |
| W-Axis Travel Sub Spindle | 23.75 in |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30/ 22 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15/ 11 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 107.0 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (Mazatrol SmoothEZ) |
| Dimensions | 109.1" 75" x 67.9" |
| Weight | 12,60 LBS |
MAZATROL SmoothEZ
HIGH POWERED COOLANT - 59 PSI/ 13 GPM
COOLANT CHILLER
AUTOMATIC TOOL EYE
SMOOTH ENGRAVING FUNCTION
