DELIVERED 2016/ 17 MAZAK VCN 530C-II DM.. 50 HP 18,000 RPM
Have one to sell?
ConditionUsed
1 available

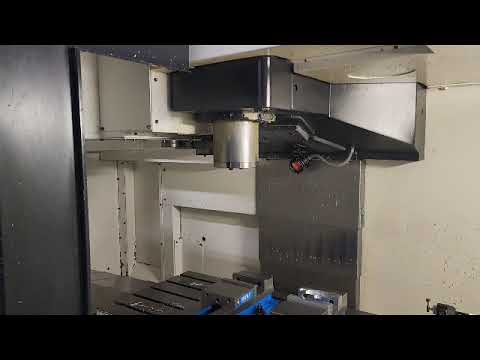

2011 MAZAK VCN 530C-II DM vertical machining center features a 50 hp spindle motor, 18000 rpm speed, and 30-tool capacity. Equipped with MAZATROL MATRIX NEXUS control and high-pressure coolant system at 213 psi, it's perfect for precise machining tasks.
MAZATROL MATRIX NEXUS CONTROL
12.1" COLOR LCD
WINDOWS XP OPERATING SYSTEM
LAN PORT IN CABINET
MT CONNECT
EIA/ ISO INPUT
ADDITIONAL EIA/ ISO
MAZACC-2D SOFTWARE (SHAPE COMPENSATION)
ABSOLUTE ENCODER 3Y3
MANUAL PULSE GENERATOR
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
30 TOOL MAGAZINE
COOLERS FOR BALL SCREW (X-Y-Z AXIS)
WORK LIGHT
POWER TRANSFORMER FOR NORTH AMERICAN MARKET
RELOCATION DEVICE
CHIP CONVEYOR LEFT DISP (HINGE/ FOR STEEL)
HI-PRESSURE COOLANT-THRU SPINDLE - 213 PSI
DUAL PROBING KIT - OMP60/ OTS A W/EIA INSPECT PLUS
SYNCHRONIZED TAPPING (G84.2/ G84.3)
2011 MAZAK VCN 530C-II DM vertical machining center features a 50 hp spindle motor, 18000 rpm speed, and 30-tool capacity. Equipped with MAZATROL MATRIX NEXUS control and high-pressure coolant system at 213 psi, it's perfect for precise machining tasks.
Imperial
| X Travel | 41.3" |
| Y Travel | 20.87" |
| Z Travel | 20.87" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 21.65" |
| Table Size (L) | 51.18" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 5.90'' - 25.98'' |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Chip Conveyor | YES |
| Control | CNC (MAZAK MAZATROL MATRIX NEXUS 2) |
| Weight | 16,000 LBS |
MAZATROL MATRIX NEXUS CONTROL
12.1" COLOR LCD
WINDOWS XP OPERATING SYSTEM
LAN PORT IN CABINET
MT CONNECT
EIA/ ISO INPUT
ADDITIONAL EIA/ ISO
MAZACC-2D SOFTWARE (SHAPE COMPENSATION)
ABSOLUTE ENCODER 3Y3
MANUAL PULSE GENERATOR
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
30 TOOL MAGAZINE
COOLERS FOR BALL SCREW (X-Y-Z AXIS)
WORK LIGHT
POWER TRANSFORMER FOR NORTH AMERICAN MARKET
RELOCATION DEVICE
CHIP CONVEYOR LEFT DISP (HINGE/ FOR STEEL)
HI-PRESSURE COOLANT-THRU SPINDLE - 213 PSI
DUAL PROBING KIT - OMP60/ OTS A W/EIA INSPECT PLUS
SYNCHRONIZED TAPPING (G84.2/ G84.3)
