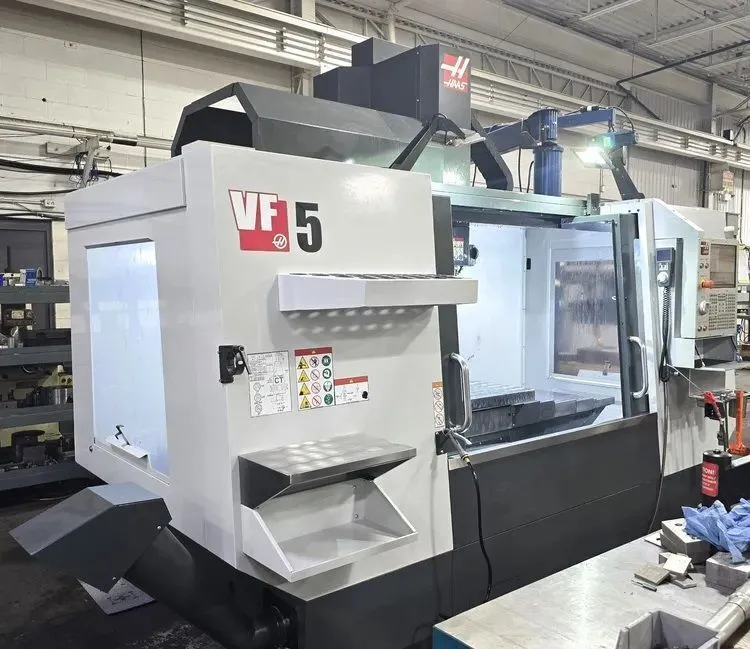

HAAS VF-5
Have one to sell?
ConditionUsed
1 available
HAAS VF-5, 2021 vertical machining center. Features include 50" x 26" x 25" travels, 8100 RPM spindle, CAT 40 taper, 30 HP motor, high-speed machining, 24-tool ATC, 300 PSI coolant, and wireless probing. Equipped with 4th axis wiring and more.
MAX TABLE LOAD 4,000 LBS
MAX CUTTING 500 IPM
MAX THRUST X 2550 LBF
MAX THRUST Y 4100 LBF
MAX THRUST Z 4100 LBF
MAX TOOL DIAMETER 3.5"
MAX TOOL WEIGHT 12 LB
TOOL-TO-TOOL (AVG) 4.2 S
CHIP-TO-CHIP (AVG) 4.5 S
8100 RPM SPINDLE
4TH AXIS DRIVE AND WIRING - ADDED AT MACHINE INSTALL.
THROUGH SPINDLE COOLANT 300PSI
SIDE MOUNT TOOL CHANGER - 30 TOOLS
CHIP AUGER
HIGH-INTENSITY LIGHTING
PROGRAMMABLE COOLANT NOZZLE
HIGH-SPEED MACHINING
REMOTE JOG HANDLE WITH TOUCHSCREEN DISPLAY
AUXILIARY COOLANT FILTER
CHIP STRAINER
WIRELESS INTUITIVE PROBING SYSTEM
HAAS VF-5, 2021 vertical machining center. Features include 50" x 26" x 25" travels, 8100 RPM spindle, CAT 40 taper, 30 HP motor, high-speed machining, 24-tool ATC, 300 PSI coolant, and wireless probing. Equipped with 4th axis wiring and more.
Imperial
| X Travel | 50" |
| Y Travel | 26" |
| Z Travel | 25" |
| Spindle Speed | 8100 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 24" |
| Table Size (L) | 54" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4.2 - 29.2" |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 300 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 710 / 710 / 710 IPM |
| Control | CNC (HAAS NextGen) |
| Dimensions | 168 in x 102 in x 113 in |
| Weight | 15600 lb |
MAX TABLE LOAD 4,000 LBS
MAX CUTTING 500 IPM
MAX THRUST X 2550 LBF
MAX THRUST Y 4100 LBF
MAX THRUST Z 4100 LBF
MAX TOOL DIAMETER 3.5"
MAX TOOL WEIGHT 12 LB
TOOL-TO-TOOL (AVG) 4.2 S
CHIP-TO-CHIP (AVG) 4.5 S
8100 RPM SPINDLE
4TH AXIS DRIVE AND WIRING - ADDED AT MACHINE INSTALL.
THROUGH SPINDLE COOLANT 300PSI
SIDE MOUNT TOOL CHANGER - 30 TOOLS
CHIP AUGER
HIGH-INTENSITY LIGHTING
PROGRAMMABLE COOLANT NOZZLE
HIGH-SPEED MACHINING
REMOTE JOG HANDLE WITH TOUCHSCREEN DISPLAY
AUXILIARY COOLANT FILTER
CHIP STRAINER
WIRELESS INTUITIVE PROBING SYSTEM
