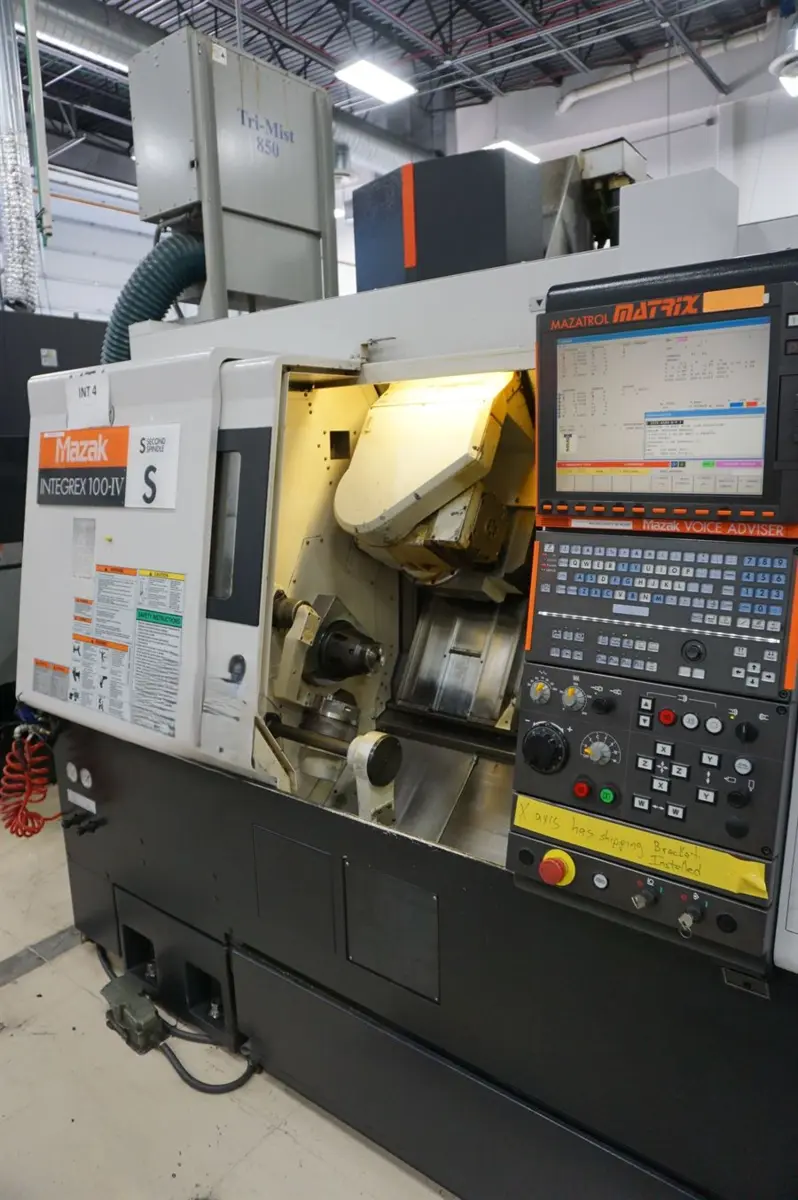

MAZAK INTEGREX 100 IVS (2008)

Name: QUICK MACHINERY SALES.COM INC.
Address: 14770 North 78th Way, Ste. B, Scottsdale, AZ, 85260, US
Telephone: 480-423-9045

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

INTEGREX 100 IVS

Year:

2008

Stock #:

210715

Status:

For Sale

ImperialMetric

Maximum Swing	21.46"	545.08 mm
Max Turning Diameter	21.46"	545.08 mm
Main Spindle Bore/Max Bar Capacity	2.4/ 2.0	2.4/ 2.0
Tail Stock/Sub Spindle	Sub Spindle	Sub Spindle
Maximum Swing Over Cross Slide	13.86"	352.04 mm
Maximum Cutting Length	29.65"	753.11 mm
Distance Between Spindles	31.18"	791.97 mm
X-Axis Travel (X1, X2, X3)	16.14	16.14
Z-Axis Travel (Z1, Z2, Z3)	31.69	31.69
Y-Axis Travel (Y1, Y2, Y3)	5.51	5.51
C-Axis Indexing (1, 2)	.0001/ .0001	.0001/ .0001
W-Axis Travel Sub Spindle	31.3 in
Main Spindle Chuck Size	6"	152.4 mm
Main Spindle Chuck Type	Hydraulic	Hydraulic
Main Spindle Bore Diameter	2.4"	60.96 mm
Main Spindle Maximum Bar Work	2"	50.8 mm
Main Spindle Speed	6,000 RPM	6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)	15	15
Sub Spindle/2nd Spindle Chuck Size	6	6
Sub Spindle/2nd Spindle Bore Size	2	2
Sub Spindle/2nd Spindle Chuck Type	Hydraulic	Hydraulic
Sub Spindle/2nd Spindle Speed	6,000 RPM	6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)	15	15
ATC Magazine Capacity	40	40
B-Axis Travel	225 DEGREES	225 DEGREES
Parts Catcher	Yes	Yes
Chip Conveyor	Yes	Yes
Milling Spindle Synchronous Tapping	No	No
High Pressure Coolant System (PSI)	213	213
Control	CNC (MAZATROL MATRIX)	CNC (MAZATROL MATRIX)
Dimensions	118.9" x 85.04"	118.9" x 85.04"

MAZATROL MATRIX CONTROL
C-AXIS
Y-AXIS
B-AXIS
CHIP CONVEYOR
