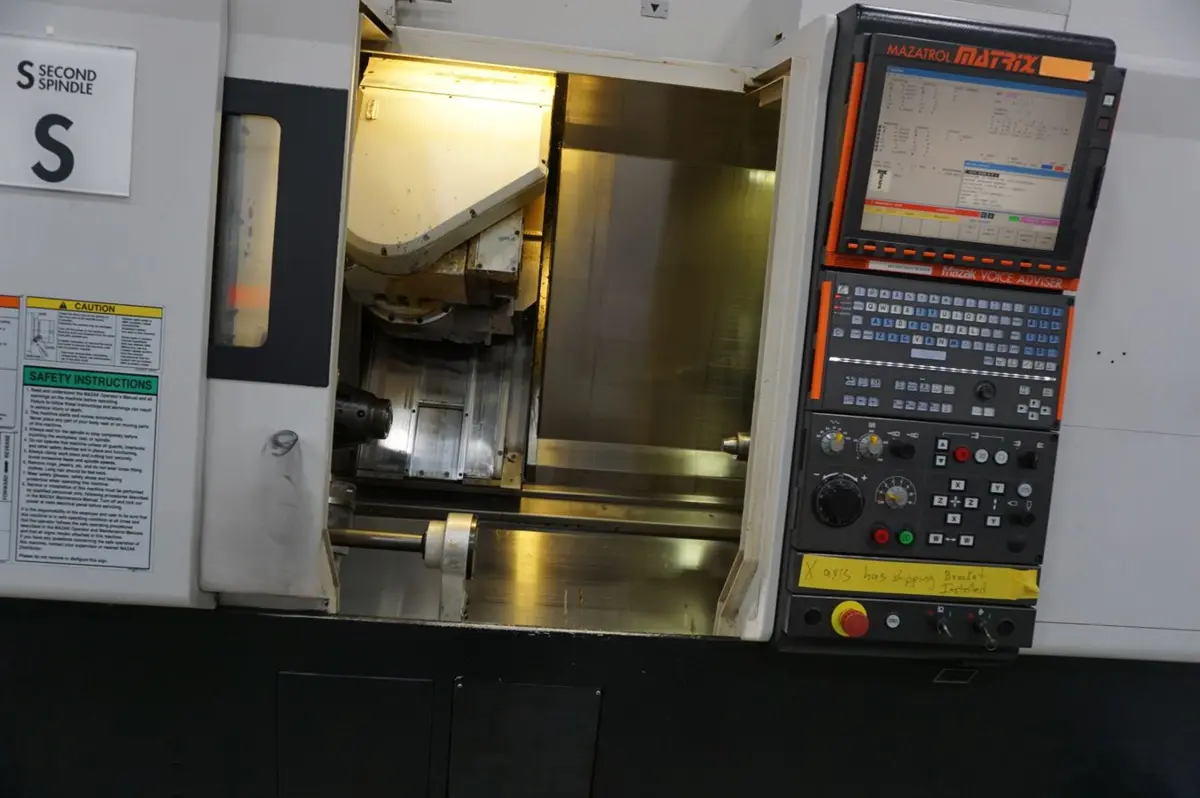

MAZAK INTEGREX 100 IVS

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

INTEGREX 100 IVS

Year:

2008

Stock #:

210716

Status:

For Sale

THIS INTEGREX 100S HAS A MATRIX CONTROL, 6" CHUCKS - BB06 LARGE BAR PKG., 213 PSI COOLANT THRU, 2ND SPINDLE .0001 DEGREE.

ImperialMetric

Maximum Swing	21.46"	545.08 mm
Max Turning Diameter	21.46"	545.08 mm
Main Spindle Bore/Max Bar Capacity	2.07	2.07
Tail Stock/Sub Spindle	Sub Spindle	Sub Spindle
Maximum Swing Over Cross Slide	13.86"	352.04 mm
Maximum Cutting Length	29.65"	753.11 mm
Distance Between Spindles	31.18"	791.97 mm
X-Axis Travel (X1, X2, X3)	16.14	16.14
Z-Axis Travel (Z1, Z2, Z3)	31.69	31.69
Y-Axis Travel (Y1, Y2, Y3)	5.51	5.51
C-Axis Indexing (1, 2)	.0001/ .0001	.0001/ .0001
W-Axis Travel Sub Spindle	31.3 in
Main Spindle Chuck Size	6"	152.4 mm
Main Spindle Chuck Type	Collet	Collet
Main Spindle Bore Diameter	2.07"	52.578 mm
Main Spindle Maximum Bar Work	2.07"	52.578 mm
Main Spindle Speed	6,000 RPM	6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)	15	15
Sub Spindle/2nd Spindle Chuck Size	6	6
Sub Spindle/2nd Spindle Bore Size	2	2
Sub Spindle/2nd Spindle Chuck Type	Collet	Collet
Sub Spindle/2nd Spindle Speed	6,000 RPM	6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)	15	15
ATC Magazine Capacity	40	40
B-Axis Travel	225 DEGREES	225 DEGREES
B Axis Rotary Tool Spindle Speed	12,000 RPM	12000 rpm
B-Axis Rotary Tool Spindle Horsepower	7.5 hp
Parts Catcher	No	No
Chip Conveyor	Yes	Yes
Milling Spindle Synchronous Tapping	No	No
High Pressure Coolant System (PSI)	213	213
Control	CNC (MAZATROL MATRIX)	CNC (MAZATROL MATRIX)
Dimensions	118.9" x 85.04"	118.9" x 85.04"

MAZATROL MATRIX CONTROL
Y-AXIS CONTROL
C-AXIS CONTROL
B-AXIS CONTROL
FULL 5-AXIS
213 PSI COOLANT-THRU
COLLET CHUCKS
CHIP CONVEYOR
