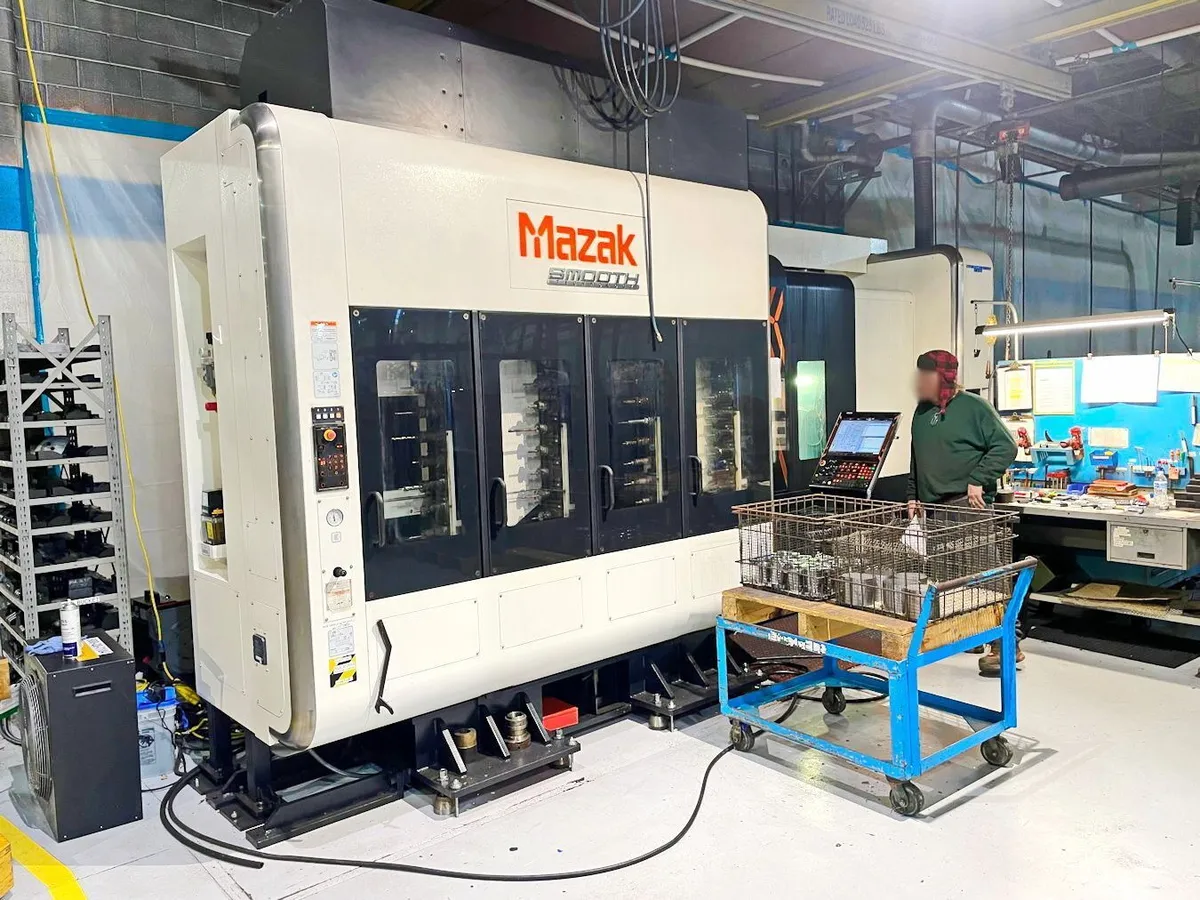

2017 Mazak Integrex i-200ST Multi-Axis CNC Milling and Turning Center

2017 Mazak Integrex i-200ST Multi-Axis CNC Milling and Turning Center

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX I-200ST
Condition:
Good
Year:
2017
Stock #:
210717
Status:
For Sale

Description

2017 Mazak Integrex i-200ST CNC Milling and Turning Center offers a 25.91" max swing, 5,000 RPM main and sub spindles, 72-tool ATC, and high-pressure coolant. Features include the Y-axis, B-axis, and C-axis, equipped with a chip conveyor and sub-spindle.

Maximum Swing25.91"658.11 mm
Max Turning Diameter25.91"658.11 mm
Main Spindle Bore/Max Bar Capacity2.99"/ 2.6"2.99"/ 2.6"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length59.8"1,518.9 mm
X-Axis Travel (X1, X2, X3)24.21/ 9.0624.21/ 9.06
Z-Axis Travel (Z1, Z2, Z3)6060
Y-Axis Travel (Y1, Y2, Y3)9.84"9.84"
C-Axis Indexing (1, 2)YESYES
W-Axis Travel Sub Spindle56 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3"76.2 mm
Main Spindle Maximum Bar Work2.56"65.024 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.562.56
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3030
ATC Magazine Capacity7272
Turret Tool Positions 1, 299
Turret Rotary Tool Spindle Speed 1, 21200012000
B-Axis Travel-30° ~ 210°-30° ~ 210°
B-Axis Head Indexing240°240 deg
Bar FeedYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
High Pressure Coolant System (PSI)10001000
Work Measuring System (Probe)YESYES
Lower Turret Positions99
ControlCNC (MAZATROL SMOOTH X)CNC (MAZATROL SMOOTH X)

SUB-SPINDLE
12,000 RPM MILLING SPINDLE
36 ATC
Y-AXIS
B-AXIS
C-AXIS
CHIP CONVEYOR
