2017 MAZAK VC-500A/5X
Have one to sell?
ConditionUsed
1 available

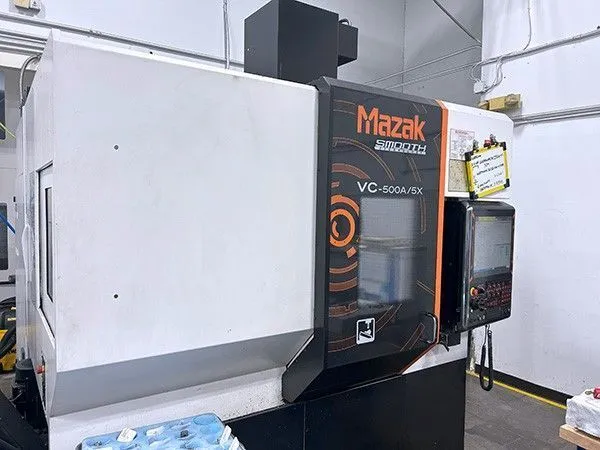

2017 MAZAK VC-500A/5X vertical machining center, featuring 22" X, 20" Y, and 20" Z travels, 12,000 rpm spindle, 30-tool capacity, CAT 40 spindle taper, MAZATROL MATRIX 2, and RENISHAW probing. Ideal for precision 5-axis contouring projects.
MAZATROL MATRIX 2
RENISHAW PROBING
TOOL PRESETTER
30 POSITION ATC
CHIP CONVEYOR
2017 MAZAK VC-500A/5X vertical machining center, featuring 22" X, 20" Y, and 20" Z travels, 12,000 rpm spindle, 30-tool capacity, CAT 40 spindle taper, MAZATROL MATRIX 2, and RENISHAW probing. Ideal for precision 5-axis contouring projects.
Imperial
| X Travel | 22" |
| Y Travel | 20" |
| Z Travel | 20" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 19.56" |
| Main Spindle Motor | 15 hp |
| Spindle Taper | CAT 40 |
| 4 Axis Table Rotation | .001 Degree Positioning Only 360000 Degrees |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1181/ 1181/ 1181 |
| Chip Conveyor | YES |
| Control | CNC (MAZATROL SMOOTH X) |
| Dimensions | 84" X 124" X 125" |
| Weight | 14,300 LBS |
MAZATROL MATRIX 2
RENISHAW PROBING
TOOL PRESETTER
30 POSITION ATC
CHIP CONVEYOR
