INTEGREX 200-IV ST-1500U

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX 200-IV ST-1500U
Year:
2007
Stock #:
210728
Status:
For Sale

Description

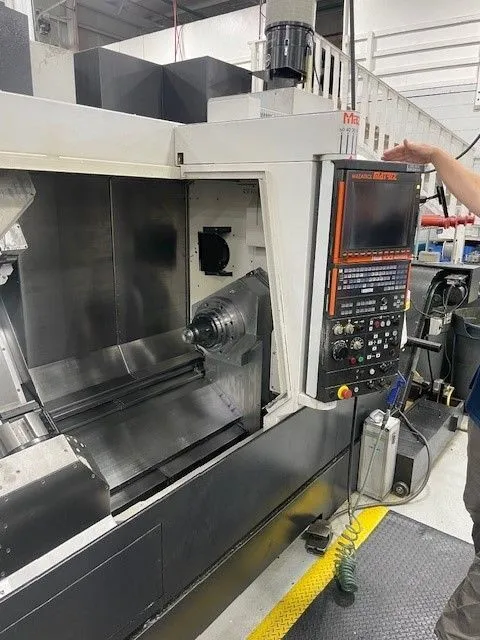

MAZAK INTEGREX 200-IV ST-1500U, used CNC lathe with Y-Axis/Multi-Axis. Features 8" chuck size, 30 HP spindle, 5000 RPM speeds, and 26" turning diameter. Ideal for precision machining needs.

Maximum Swing26.5"673.1 mm
Max Turning Diameter26"660.4 mm
Main Spindle Bore/Max Bar Capacity2.99/2.52.99/2.5
Tail Stock/Sub SpindleYY
Maximum Cutting Length60"1,524 mm
X-Axis Travel (X1, X2, X3)22.822.8
Z-Axis Travel (Z1, Z2, Z3)60.8260.82
Y-Axis Travel (Y1, Y2, Y3)+/- 3.15+/- 3.15
C-Axis Indexing (1, 2).0001 Degree.0001 Degree
W-Axis Travel Sub Spindle60.24 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)4040
Sub Spindle/2nd Spindle Bore Size2.992.99
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3030
ATC Magazine Capacity40 CAPTO40 CAPTO
Turret Rotary Tool Spindle Speed 1, 21200012000
Turret Rotary Tool Horse Power 1, 22525
B-Axis Travel225 Degrees225 Degrees
Chip ConveyorYesYes
Tool Eye Measurement Lower TurretYesYes
Number of Available Live Tool Holders22
Multi Tap TransformerYesYes
Tool Eye Measurement B AxisYESYES
Lower Turret Positions99
Rapid Traverse, X-Axis14961496
Rapid Traverse, Y-Axis10231023
Rapid Traverse, Z-Axis14961496
Additional ToolingLarge Amount of ToolingLarge Amount of Tooling
ControlCNC (MAZAK MATRIX)CNC (MAZAK MATRIX)

2 CARTS FULL OF TOOLS
COOLANT THRU SPINDLE
SPINDLE CHILLER
USB PORT
ALL TURRET TOOLING IN PHOTOS
NEW B AXIS SPINDLE 6 MONTHS AGO
AUTO PARTS CATCHER
BAR FEED INTERFACE
(2) 8" 3 JAW HYDRAULIC CHUCKS
COLLET CHUCKS
