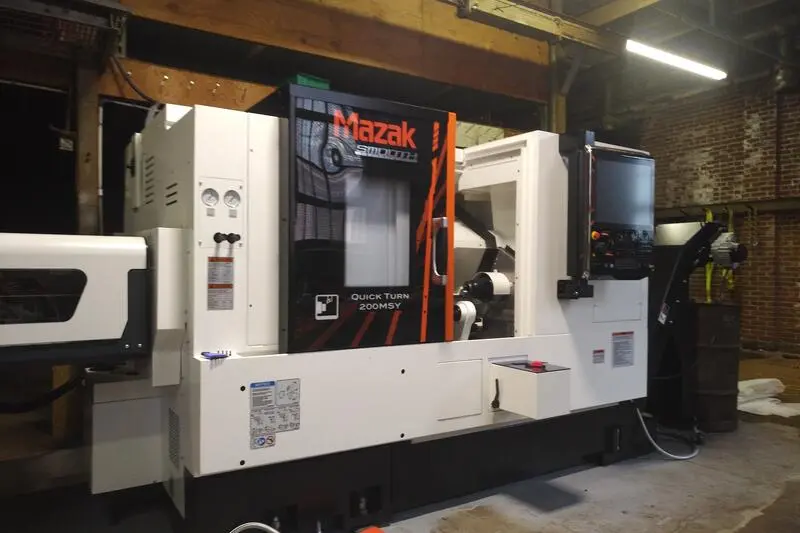

MAZAK QT 200MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QT 200MSY
Year:
2020
Stock #:
210729
Status:
For Sale

Description

Used 2020 MAZAK QT 200MSY CNC Lathe with multi-axis, featuring a main spindle speed of 5000 RPM, sub spindle at 6000 RPM, and max swing of 26.5". Equipped with SMOOTH G Control, parts catcher, chip conveyor, and bar feeder for enhanced efficiency.

Maximum Swing26.5"673.1 mm
Max Turning Diameter14.75"374.65 mm
Main Spindle Bore/Max Bar Capacity3.0/ 2.03.0/ 2.0
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length22.7"576.58 mm
Distance Between Spindles22"558.8 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)22.6322.63
Y-Axis Travel (Y1, Y2, Y3)44
W-Axis Travel Sub Spindle23 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3"76.2 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size22
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 21010
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Number of Available Live Tool Holders33
ControlCNCCNC

SPECIFICATIONS:
BED LENGTH                   20"
MAXIMUM SWING                26.50"
MAXIMUM MACHINING DIAMETER   14.750"
SPINDLE BORE                 3"
MAXIMUM BAR WORK CAPACITY    2"
MAXIMUM MACHINING LENGTH     22.701"
MAIN SPINDLE
CHUCK SIZE                   8"
MAXIMUM SPEED                5000 RPM
MOTOR OUTPUT (30 MINUTE RATING) 35.0 HP
SECOND SPINDLE
CHUCK SIZE   6"
MAXIMUM SPEED   6000 RPM
MOTOR OUTPUT (30 MINUTE RATING) 10.0 HP / 8 KW
TURRET NUMBER OF TOOLS  12
MAXIMUM SPEED   6000 RPM
MOTOR OUTPUT (5 MINUTE RATING) 10.0 HP / 8 KW
X AXIS TRAVEL   9.00"
Y AXIS TRAVEL   4.00"
Z AXIS TRAVEL   22.63"
W AXIS TRAVEL   23.00"

SMOOTH G CONTROL
ROYAL PRODUCTS COLLET INSTALL
 TOOL FOR QG-42 (PART# 44097)
AUTOMATIC PARTS CATCHER
 (DIA. 3" X 4.7" X 5.5 LBS)
CHIP CONVEYOR SIDE 20"(500U) (HINGE TYPE)
LNS QUICK LOAD SERVO 80-S2 BARFEED
ADDITIONAL SET OF MANUALS
240V TO 480V MAIN BREAKER
ROYAL PRODUCTS A2-6, QG-65 Q/G
 COMPACT COLLET CHUCK ONLY
 ROYAL PRODUCTS MANUAL COLLET
 INSTALL TOOL FOR QG-65
ROYAL PRODUCTS QUICK GRIP
COLLET FOR QG-65 COLLETS
(1) 1/4" DIA, (1) 9/16 HEX
3 LIVE TOOLS AND DOUBLE TOOL

MFG - 12/2019
