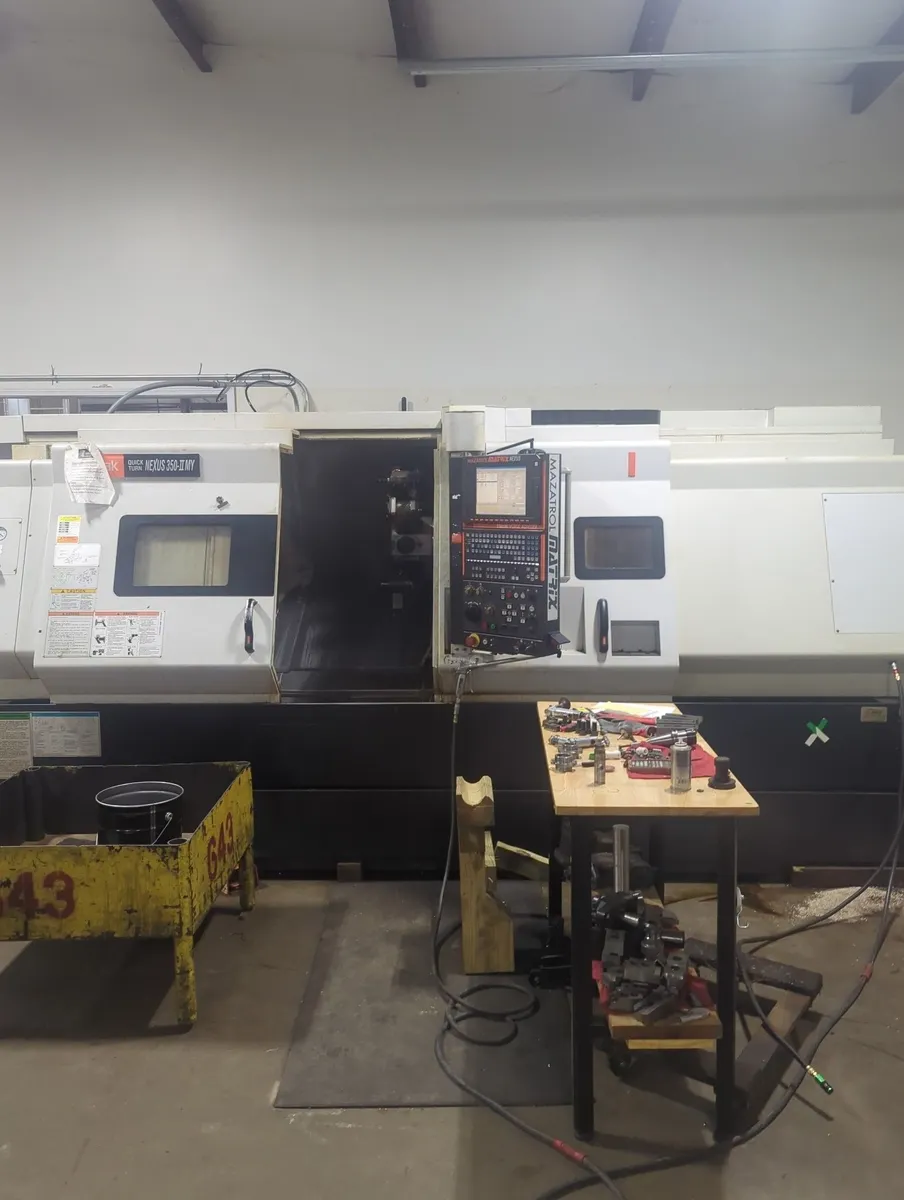

MAZAK QTN 350MY/ 60" (2009)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 350MY II
Condition:
Good
Year:
2009
Stock #:
210731
Status:
For Sale

Description

MAZAK QTN 350MY II CNC Lathe, 2009 model, multi-axis with steady rest. It is an efficient and reliable choice for precision machining. Ideal for advanced manufacturing needs. Used, excellent addition to your workshop.

Maximum Swing26.5"673.1 mm
Max Turning Diameter16.5"419.1 mm
Main Spindle Bore/Max Bar Capacity4.4"/ 4.0"4.4"/ 4.0"
Tail Stock/Sub SpindleTAILSTOCKTAILSTOCK
Maximum Cutting Length62.72"1,593.1 mm
X-Axis Travel (X1, X2, X3)10.1310.13
Z-Axis Travel (Z1, Z2, Z3)63.2563.25
Y-Axis Travel (Y1, Y2, Y3)6.0"6.0"
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4"101.6 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)40/30 HP (30 min/continuous)40/30 HP (30 min/continuous)
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 21010
Steady RestYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Weight17,48017,480

MAZATROL MATRIX NEXUS CONTROL
12" THRU-HOLE HYD CHK WITH 4" BAR CAP
MAZAK TAPPING/ BORING TORNADO - EIA HELICAL TAP
AUTO TOOL LENGTH
CHIP CONVEYOR
213 PSI HI-POWERED COOLANT
USER MACROS (COMMON VARIABLES: 600 PAIRS)
THREAD START POINT COMPENSATION
RE-THREADING
THREAD CUT-SPEED OVERRIDE
SYNCH MILL TAPPING
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
MIST COLLECTOR
OVERLOAD DETECTION
TRANSFORMER
