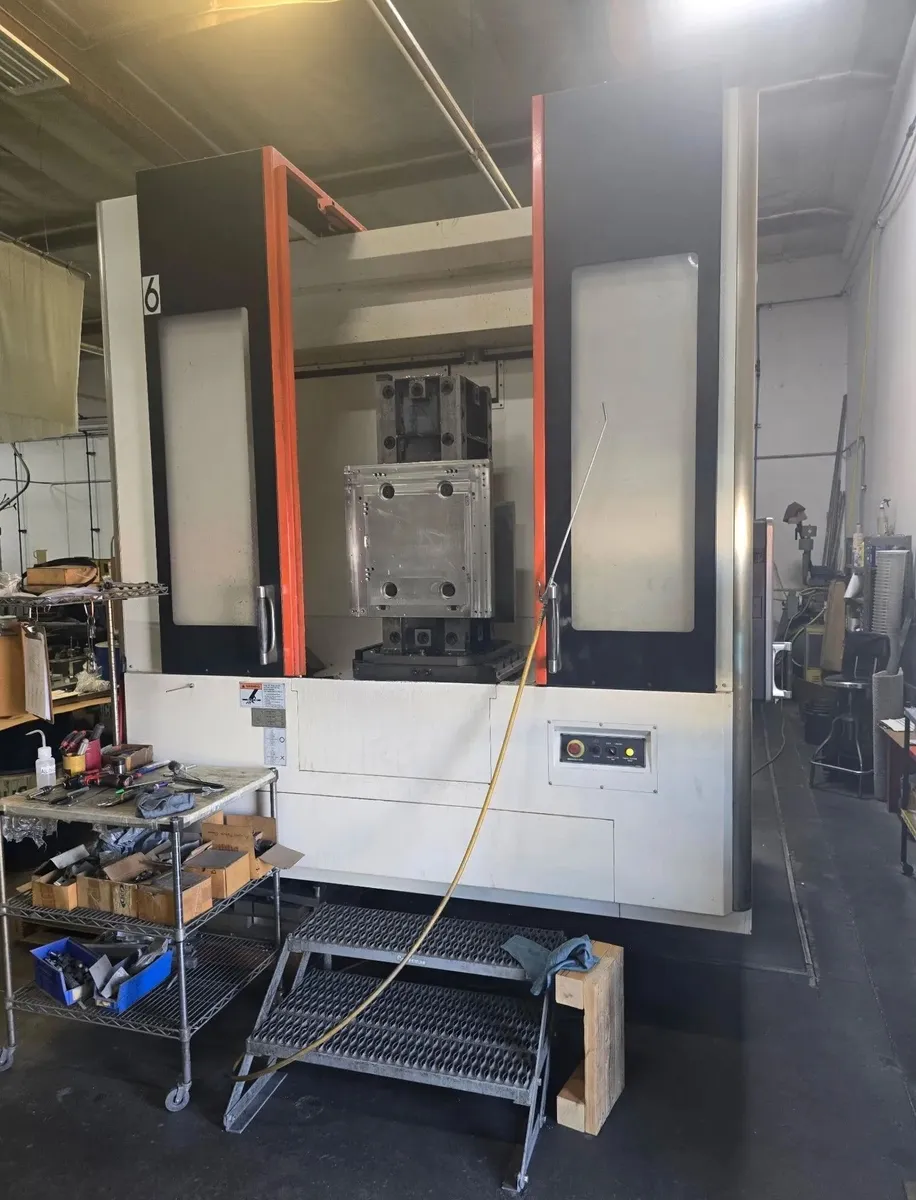

MAZAK HCN 6800-II 4 AXIS (2014)
Have one to sell?
ConditionUsed
1 available
MAZAK HCN 6800-II from 2014 offers a 4-axis horizontal machining center with 41.34" X, 35.43" Y, and 38.58" Z travel. Features CAT 50 spindle, 50 hp, 8000 rpm, 120 tool capacity, dual pallets, MAZATROL control, and more, ideal for precision and efficiency. Includes 70+ toolholders.
MAZATROL MATRIX NEXUS 2 CONTROL
MT CONNECT
PREPPED FOR SUPERFLOW HI-PRESSURE COOLANT UNIT
8000 RPM HI-TORQUE SPINDLE
THROUGH TOOL COOLANT
PROBING
SYNCH TAP
TOOL BREAKAGE DETECTION
CHILLED BALL SCREWS XYZ
COOLANT THROUGH SPINDLE AIR
CHIP CONVEYOR
INCLUDES 70+ TOOLHOLDERS
MAZAK HCN 6800-II from 2014 offers a 4-axis horizontal machining center with 41.34" X, 35.43" Y, and 38.58" Z travel. Features CAT 50 spindle, 50 hp, 8000 rpm, 120 tool capacity, dual pallets, MAZATROL control, and more, ideal for precision and efficiency. Includes 70+ toolholders.
Imperial
| X-AXIS TRAVEL | 41.34" |
| Y-AXIS TRAVEL | 35.43" |
| Z-AXIS TRAVEL | 38.58" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 50 hp |
| SPINDLE SPEED | 8000 rpm |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 24.8" x 24.8" |
| PALLET SIZE (W) | 24.8" |
| PALLET SIZE (L) | 24.8" |
| Number of Axis | 4 |
| PALLET LOAD CAPACITY | 3307 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 213 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS 2 CONTROL) |
| Dimensions | 130" X 248" X 134" |
| Weight | 41,800 |
MAZATROL MATRIX NEXUS 2 CONTROL
MT CONNECT
PREPPED FOR SUPERFLOW HI-PRESSURE COOLANT UNIT
8000 RPM HI-TORQUE SPINDLE
THROUGH TOOL COOLANT
PROBING
SYNCH TAP
TOOL BREAKAGE DETECTION
CHILLED BALL SCREWS XYZ
COOLANT THROUGH SPINDLE AIR
CHIP CONVEYOR
INCLUDES 70+ TOOLHOLDERS
