2015 MAZAK QTN 200MSY-II
Have one to sell?
ConditionUsed
1 available

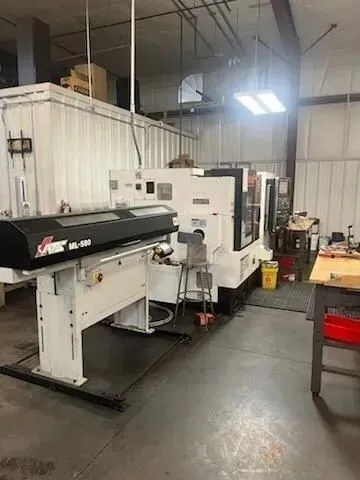

MAZAK QTN 200MSY - II, a 2015 multi-axis CNC lathe with features including 20" max swing, sub spindle, 20 HP main spindle, and 12 turret tool positions. Equipped with parts catcher, chip conveyor, and CNC control (Mazatrol Matrix Nexus II).
To our knowledge, all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details, and we
encourage an inspection of the machine(s) and accessories before purchase.
*BAR FEEDER NOT INCLUDED IN SALE*
PARTS CATCHER
CHIP CONVEYOR
TOOL EYE AUTOMATIC FRONT SPINDLE
NUMBER OF AVAILABLE LIVE TOOL HOLDERS- 2
CONTROL- CNC (MAZATROL MATRIX NEXUS II)
MAZAK QTN 200MSY - II, a 2015 multi-axis CNC lathe with features including 20" max swing, sub spindle, 20 HP main spindle, and 12 turret tool positions. Equipped with parts catcher, chip conveyor, and CNC control (Mazatrol Matrix Nexus II).
Imperial
| Maximum Swing | 20" |
| Max Turning Diameter | 13.4" |
| Main Spindle Bore/Max Bar Capacity | 2.44/ 2.0 |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Swing Over Cross Slide | 13.4" |
| Distance Between Spindles | 20" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 20 |
| Y-Axis Travel (Y1, Y2, Y3) | 4 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.44" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.07" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Control | CNC (MAZATROL MATRIX NEXUS 2) |
To our knowledge, all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details, and we
encourage an inspection of the machine(s) and accessories before purchase.
*BAR FEEDER NOT INCLUDED IN SALE*
PARTS CATCHER
CHIP CONVEYOR
TOOL EYE AUTOMATIC FRONT SPINDLE
NUMBER OF AVAILABLE LIVE TOOL HOLDERS- 2
CONTROL- CNC (MAZATROL MATRIX NEXUS II)
