(NEW)TAKISAWA TMX-4000ST MILL/TURN CYCLE TIME 1 HR. 49 MIN.
Have one to sell?
ConditionUsed
1 available

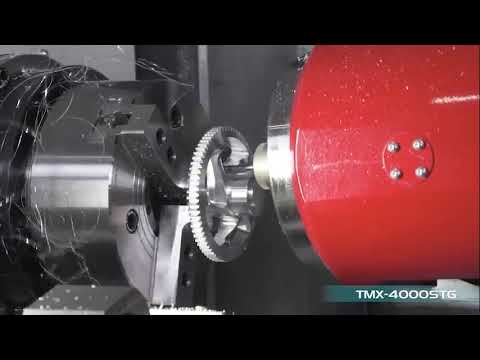

TAKISAWA TMX-4000ST multi-axis CNC lathe, 2020 model, (NEW), features a 10-inch main spindle chuck size. Ideal for precision and efficiency in machining tasks.
***The machine has less than 2 hours of cut time***
Y-Axis 10.24"
Machining Length 59.06"
# Axis 5
Max Turning Diameter 19.69"
Max Turning Length 59"
Bar Capacity 3.15"
Chuck Size 10"
Max RPM 12,000 RPM
Spindle Nose A2-8
Taper CAPTO C6
Tool Changer 120
Turret Stations 12
Control: Fanuc 31i-B(5)
Continuous 5-axis at milling head
RPM: 4,000 - both spindles
Spindle Nose: A2-8 - both spindles
Chucks: Kitagawa BB-210
ATC: 120 tools 12,000 RPM CAPTO C6
12 Station Lower Turret
Max. Turning Length 59"
Max. Turning Diameter 19.69"
Bar Capacity: 3.15"
Y-axis travel for tool spindle: 10.24"
System Enhancements:
Renishaw OTS Optical Tool Setter / Tool Breakage Detector
Includes interface and design fee
Manual Tool Eye
Robot Interface
Auto Door
Raku Raku Monitor 3
19" Panel iH Pro, Anti-Crash
Coolant Pump for Tool Spindle (217 PSI)
Main Spindle: Hydraulic Actuator w/ Hole Through (Kitigawa SS1881K)
Sub Spindle: Hydraulic Actuator (solid) SMW Autoblok (SIN-S125)
Parts Unloader (Finger-Type) with Parts conveyor
(3) Double OD Holders
(1) Facing Holder
(5) ID Tool Holders
(1) LNS Chip Conveyor
(1) Barfeed Interface
All manuals and shipping brackets are included
