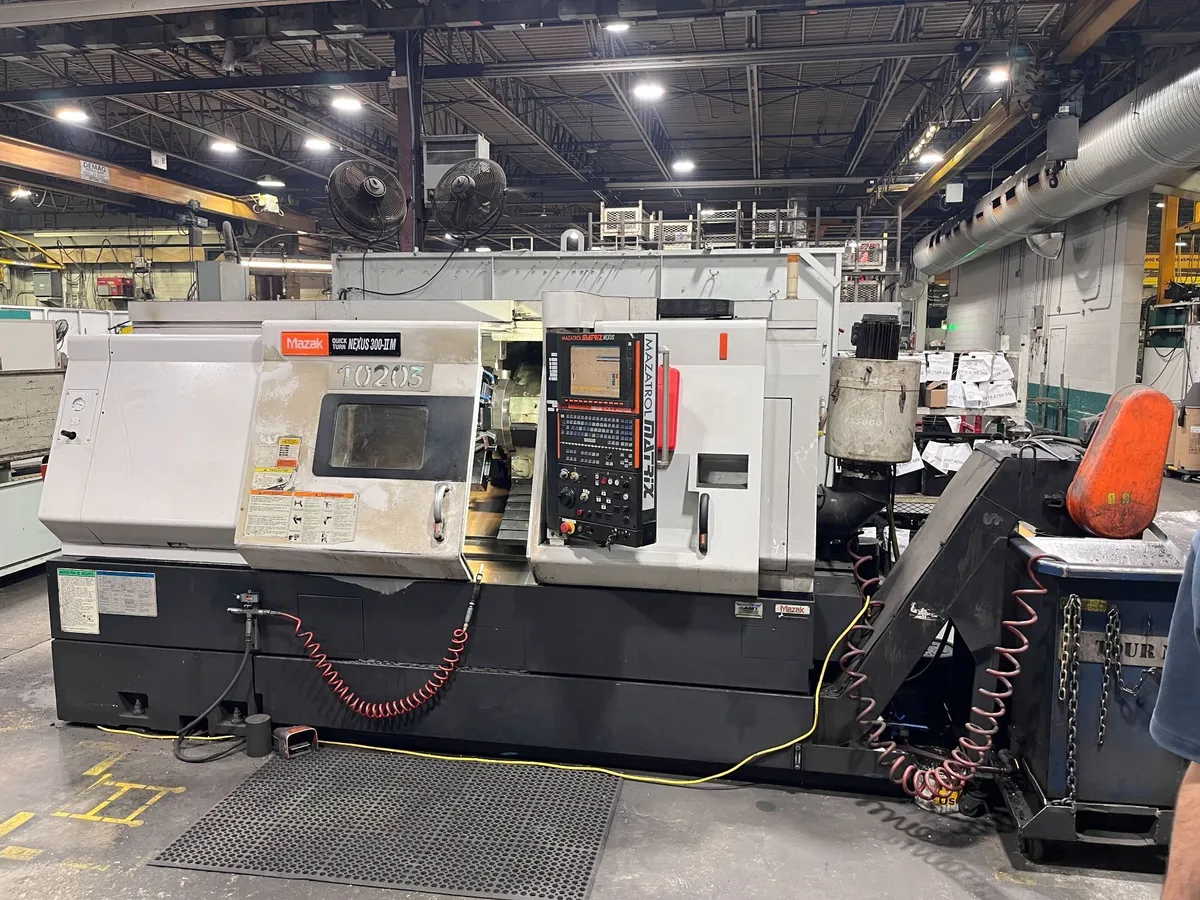

MAZAK QTN 300-II M /40" (2009)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 300-II M
Year:
2009
Stock #:
210741
Status:
For Sale

Description

For sale: 2009 MAZAK QTN 300-II M CNC Lathe. Key features include a 29.5" max swing, 16.5" turning diameter, 10" hydraulic chuck, and 4000 RPM spindle speed. Comes equipped with MAZATROL MATRIX NEXUS control, chip conveyor, and more.

Maximum Swing29.5"749.3 mm
Max Turning Diameter16.5"419.1 mm
Main Spindle Bore/Max Bar Capacity3.46/ 3.03.46/ 3.0
Tail Stock/Sub SpindleTail StockTail Stock
Distance Between Spindles48.75"1,238.2 mm
X-Axis Travel (X1, X2, X3)10.1310.13
Z-Axis Travel (Z1, Z2, Z3)48.7548.75
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)35/ 3035/ 30
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 21010
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
High Pressure Coolant System (PSI)213213
Number of Available Live Tool Holders11
ControlCNCCNC
Dimensions172" X 80.7" X 78.7172" X 80.7" X 78.7
Weight16,314 LBS16,314 LBS

MAZATROL MATRIX NEXUS CONTROL
COOLANT PAN
10" - 3 JAW HYDRAULIC CHUCK
SOME TOOLING AND 1 LIVE TOOL
CHIP CONVEYOR
