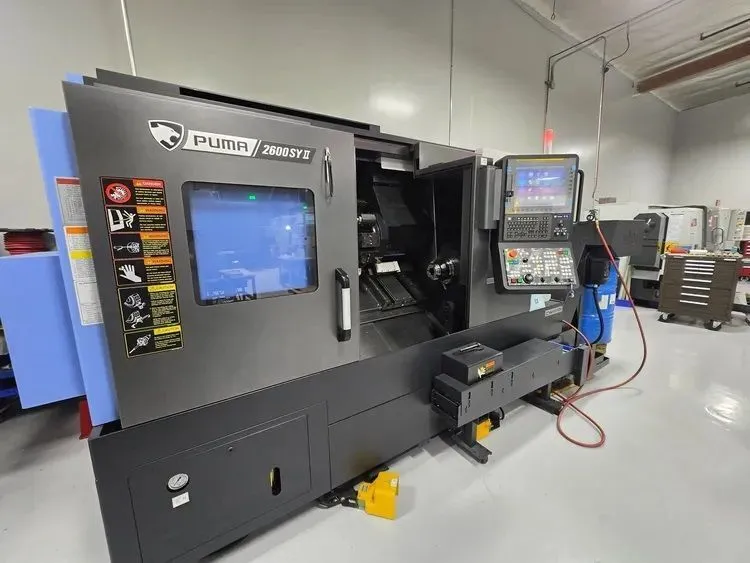

2022 DOOSAN PUMA 2600SY II CNC UNIVERSAL TURNING CENTER WITH MILLING, Y AXIS & SUB
Have one to sell?
ConditionUsed
1 available
2022 Doosan PUMA 2600SY II CNC turning center with Y-axis & sub, featuring 14.8" swing, 29.9" max diameter, 10" & 8" chucks, FANUC 0i Plus control, low hours, includes 8 live tools, chip conveyor, and parts catcher. Buyer to verify specs.
RAPID TRAVERSE C-AXIS...............200 RPM
TOOLING SHANK.......................BMT-65
BORING BAR DIAMETER.................2"
FANUC 0I PLUS CNC CONTROL
ROYAL QG-80 COLLET CHUCK MAIN
ROYAL QG-65 COLLET CHUCK SUB
BRAND-NEW-IN-BOX 10" & 8" 3-JAW CHUCKS
TOOL SETTER
PARTS CATCHER
PARTS CONVEYOR
MISC COLLETS
TURBO CHIP CONVEYOR
8 LIVE TOOLS
MISC OD & ID TOOL HOLDERS
**MACHINE IN LIKE NEW CONDITION WITH VERY LOW HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2022 Doosan PUMA 2600SY II CNC turning center with Y-axis & sub, featuring 14.8" swing, 29.9" max diameter, 10" & 8" chucks, FANUC 0i Plus control, low hours, includes 8 live tools, chip conveyor, and parts catcher. Buyer to verify specs.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 29.9" |
| Main Spindle Bore/Max Bar Capacity | 3.5/3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.7" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" (+/-2.1") |
| C-Axis Indexing (1, 2) | .001, .001 INDEXING |
| W-Axis Travel Sub Spindle | 32.7 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| B-Axis Travel | 32.7" |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 0.0394 |
| Rapid Traverse, Z-Axis | 0.0118 |
| Control | CNC (FANUC Oi PLUS) |
| Dimensions | 142" x 75" x 85" |
| Weight | 14,500 LBS |
RAPID TRAVERSE C-AXIS...............200 RPM
TOOLING SHANK.......................BMT-65
BORING BAR DIAMETER.................2"
FANUC 0I PLUS CNC CONTROL
ROYAL QG-80 COLLET CHUCK MAIN
ROYAL QG-65 COLLET CHUCK SUB
BRAND-NEW-IN-BOX 10" & 8" 3-JAW CHUCKS
TOOL SETTER
PARTS CATCHER
PARTS CONVEYOR
MISC COLLETS
TURBO CHIP CONVEYOR
8 LIVE TOOLS
MISC OD & ID TOOL HOLDERS
**MACHINE IN LIKE NEW CONDITION WITH VERY LOW HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
