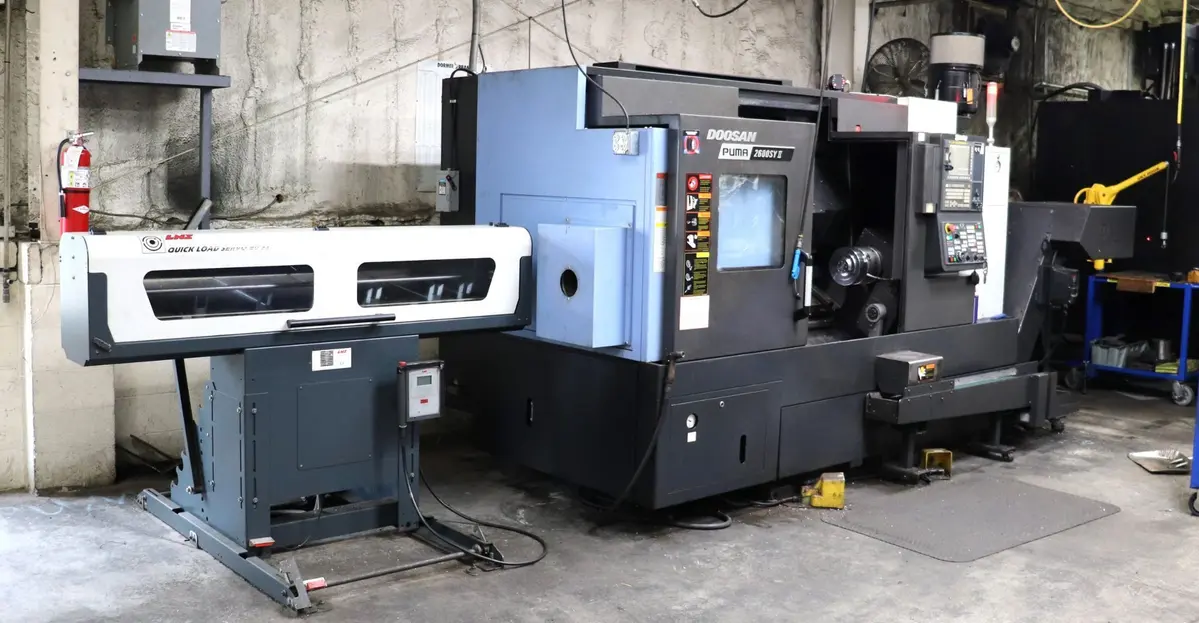

2017 DOOSAN PUMA 2600SY & LNS BARFEED
Have one to sell?
ConditionUsed
1 available
2017 DOOSAN PUMA 2600SY CNC Lathe, equipped with a sub-spindle, Y-axis, live milling, and FANUC i-Series CNC control. Features 10" hydraulic main spindle chuck, max speed 4000 RPM, and LNS barfeed. Includes radial and axial live tool holders. Ready for inspection.
FANUC i-SERIES CNC CONTROL
SUB SPINDLE
Y-AXIS
LIVE MILLING
MAIN & SUB SPINDLE SAMCHULLY CHUCKS
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
LNS QUICK LOAD 80 S2 SERVO BAR FEEDER
LNS TURBO CHIP CONVEYOR
OIL SKIMMER
DOOSAN HI-PSI COOLANT PUMPS
COOLANT TANK
ROYAL FILTERMIST FX575 MIST COLLECTOR
LIVE TOOLING INCLUDED:
(2) RADIAL TOOL HOLDERS
(3) AXIAL TOOL HOLDERS
TOOLING DISPLAYED ON TABLE AS PICTURED INCLUDED
TOOLING IN MACHINE TURRET AS PICTURED NOT INCLUDED
** MACHINE MANUFACTURED DATE: AUGUST 2017
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
2017 DOOSAN PUMA 2600SY CNC Lathe, equipped with a sub-spindle, Y-axis, live milling, and FANUC i-Series CNC control. Features 10" hydraulic main spindle chuck, max speed 4000 RPM, and LNS barfeed. Includes radial and axial live tool holders. Ready for inspection.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.38"/ 3.0" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Cutting Length | 29.9" |
| X-Axis Travel (X1, X2, X3) | 10.23" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.67" |
| Y-Axis Travel (Y1, Y2, Y3) | + / - 4.13" |
| C-Axis Indexing (1, 2) | .001 DEGREE |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.38" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 5 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (DOOSAN FANUC i-SERIES) |
| Dimensions | 153" X 74" X 85" |
| Weight | 14,500 LBS |
FANUC i-SERIES CNC CONTROL
SUB SPINDLE
Y-AXIS
LIVE MILLING
MAIN & SUB SPINDLE SAMCHULLY CHUCKS
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
LNS QUICK LOAD 80 S2 SERVO BAR FEEDER
LNS TURBO CHIP CONVEYOR
OIL SKIMMER
DOOSAN HI-PSI COOLANT PUMPS
COOLANT TANK
ROYAL FILTERMIST FX575 MIST COLLECTOR
LIVE TOOLING INCLUDED:
(2) RADIAL TOOL HOLDERS
(3) AXIAL TOOL HOLDERS
TOOLING DISPLAYED ON TABLE AS PICTURED INCLUDED
TOOLING IN MACHINE TURRET AS PICTURED NOT INCLUDED
** MACHINE MANUFACTURED DATE: AUGUST 2017
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
