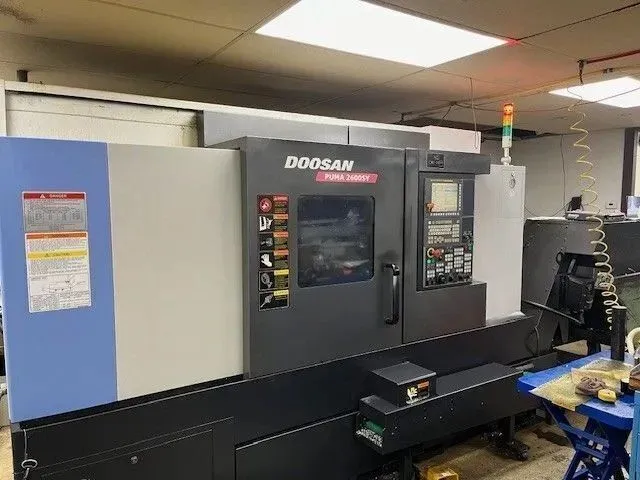

2015 DOOSAN PUMA 2600SY
Have one to sell?
ConditionUsed
1 available
2015 DOOSAN PUMA 2600SY CNC multi-axis lathe with a 30.7" swing, 14.8" max turning diameter, and 29.9" cutting length. Features include hydraulic chuck, sub spindle, parts catcher, and FANUC control, with rapid traverse for X and Z axes.
FANUC CONTROL
CHIP CONVEYOR
2015 DOOSAN PUMA 2600SY CNC multi-axis lathe with a 30.7" swing, 14.8" max turning diameter, and 29.9" cutting length. Features include hydraulic chuck, sub spindle, parts catcher, and FANUC control, with rapid traverse for X and Z axes.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.38"/ 3.0" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Cutting Length | 29.9" |
| X-Axis Travel (X1, X2, X3) | 10.23" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.67" |
| Y-Axis Travel (Y1, Y2, Y3) | + / - 4.13" |
| C-Axis Indexing (1, 2) | .001 DEGREE |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.38" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 5 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (FANUC) |
| Dimensions | 153" X 74" X 85" |
| Weight | 14,500 LBS |
FANUC CONTROL
CHIP CONVEYOR
