2023 DN SOLUTIONS LYNX 2600Y
Have one to sell?
ConditionUsed
1 available

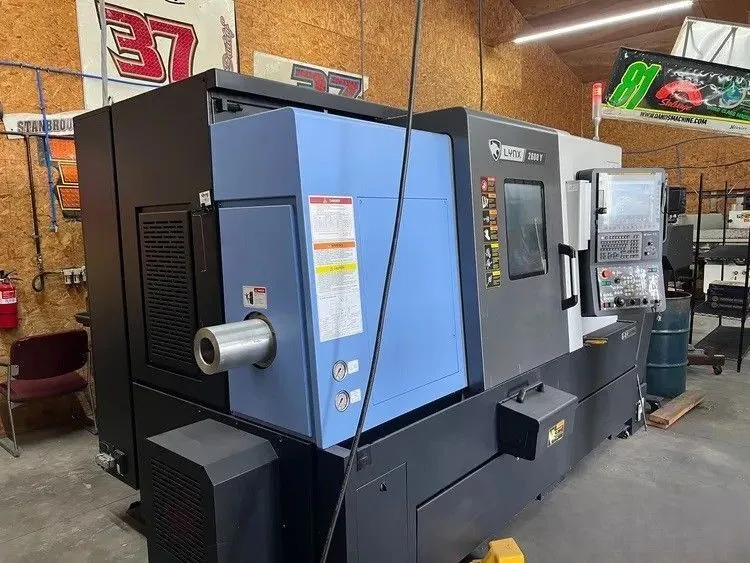

2023 DN Solutions Lynx 2600Y CNC lathe, multi-axis, used but with only 1039 hours. Equipped with FANUC 0i-Plus control, hydraulic tailstock, parts catcher, chip conveyor, and more. Features 23.6" swing, 3.5" spindle bore, and 3,500 RPM speed.
FANUC 0i-PLUS CNC CONTROL
CHIP CONVEYOR
FULLY PROGRAMMABLE HYDRAULIC TAILSTOCK
PROGRAMMABLE PARTS CATCHER
EXTENDED COOLANT COLLECTOR FOR 4' BARS
10" SAMCHULLY 3-JAW CHUCK
ROYAL-QC-80 CHUCK
ROYAL COLLETS - 1/2", 1", 1.5", 2", 2.5"
SPINDLE LINERS - 1/2", 1", 1.5", 2.0", 2.5"
3 LIVE TOOL HOLDERS
5 OD TOOL HOLDERS
4 ID TOOL HOLDERS
1" SQ BAR PULLER - 3-5/8" CAPACITY
MISC TURNING TOOLS
Only 1039 hours, like new!
2023 DN Solutions Lynx 2600Y CNC lathe, multi-axis, used but with only 1039 hours. Equipped with FANUC 0i-Plus control, hydraulic tailstock, parts catcher, chip conveyor, and more. Features 23.6" swing, 3.5" spindle bore, and 3,500 RPM speed.
Imperial
| Maximum Swing | 23.6" |
| Max Turning Diameter | 14.96" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Cutting Length | 24" |
| X-Axis Travel (X1, X2, X3) | 10 |
| Z-Axis Travel (Z1, Z2, Z3) | 26.77 |
| Y-Axis Travel (Y1, Y2, Y3) | 4 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 24 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (FANUC 0i-PLUS) |
| Dimensions | 134.8 X 75.6 X 82.5 |
| Weight | 12,620 |
FANUC 0i-PLUS CNC CONTROL
CHIP CONVEYOR
FULLY PROGRAMMABLE HYDRAULIC TAILSTOCK
PROGRAMMABLE PARTS CATCHER
EXTENDED COOLANT COLLECTOR FOR 4' BARS
10" SAMCHULLY 3-JAW CHUCK
ROYAL-QC-80 CHUCK
ROYAL COLLETS - 1/2", 1", 1.5", 2", 2.5"
SPINDLE LINERS - 1/2", 1", 1.5", 2.0", 2.5"
3 LIVE TOOL HOLDERS
5 OD TOOL HOLDERS
4 ID TOOL HOLDERS
1" SQ BAR PULLER - 3-5/8" CAPACITY
MISC TURNING TOOLS
Only 1039 hours, like new!
